Showing:

Attributes
Diagrams
Instances
Model
Properties
Source
Used by
Imported schema reqif.xsd
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Properties
attribute form default unqualified
element form default qualified
Element REQIF:REQ-IF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd

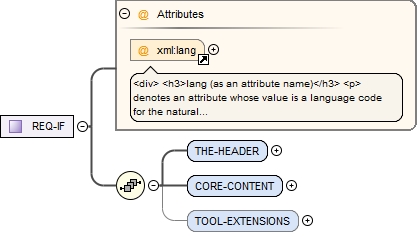

Diagram
Diagram namespace.tmp#lang reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_THE-HEADER reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_CORE-CONTENT reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_TOOL-EXTENSIONS reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF
Type REQIF:REQ-IF
Properties
content complex
Model
Children REQIF:CORE-CONTENT, REQIF:THE-HEADER, REQIF:TOOL-EXTENSIONS
Instance

<REQIF:REQ-IF xml:lang="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:THE-HEADER>{1,1}</REQIF:THE-HEADER>
  <REQIF:CORE-CONTENT>{1,1}</REQIF:CORE-CONTENT>
  <REQIF:TOOL-EXTENSIONS>{0,1}</REQIF:TOOL-EXTENSIONS>
</REQIF:REQ-IF>
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<xsd:element name="REQ-IF" type="REQIF:REQ-IF"/>
Element REQIF:REQ-IF / REQIF:THE-HEADER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_THE-HEADER_REQ-IF-HEADER
Properties
content complex
minOccurs 1
maxOccurs 1
Model
REQIF:REQ-IF-HEADER
Children REQIF:REQ-IF-HEADER
Instance

<REQIF:THE-HEADER xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:REQ-IF-HEADER IDENTIFIER="">{1,1}</REQIF:REQ-IF-HEADER>
</REQIF:THE-HEADER>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="THE-HEADER">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="REQ-IF-HEADER" type="REQIF:REQ-IF-HEADER"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

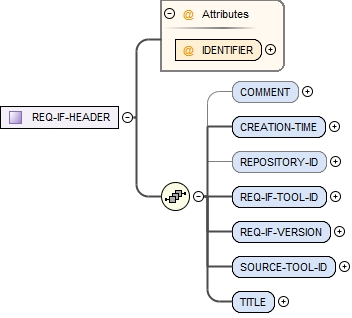

Element REQIF:REQ-IF / REQIF:THE-HEADER / REQIF:REQ-IF-HEADER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#REQ-IF-HEADER_IDENTIFIER reqif_xsd.tmp#REQ-IF-HEADER_COMMENT reqif_xsd.tmp#REQ-IF-HEADER_CREATION-TIME reqif_xsd.tmp#REQ-IF-HEADER_REPOSITORY-ID reqif_xsd.tmp#REQ-IF-HEADER_REQ-IF-TOOL-ID reqif_xsd.tmp#REQ-IF-HEADER_REQ-IF-VERSION reqif_xsd.tmp#REQ-IF-HEADER_SOURCE-TOOL-ID reqif_xsd.tmp#REQ-IF-HEADER_TITLE reqif_xsd.tmp#REQ-IF-HEADER
Type REQIF:REQ-IF-HEADER
Properties
content complex
Model
REQIF:COMMENT{0,1} , REQIF:CREATION-TIME , REQIF:REPOSITORY-ID{0,1} , REQIF:REQ-IF-TOOL-ID , REQIF:REQ-IF-VERSION , REQIF:SOURCE-TOOL-ID , REQIF:TITLE
Children REQIF:COMMENT, REQIF:CREATION-TIME, REQIF:REPOSITORY-ID, REQIF:REQ-IF-TOOL-ID, REQIF:REQ-IF-VERSION, REQIF:SOURCE-TOOL-ID, REQIF:TITLE
Instance

<REQIF:REQ-IF-HEADER IDENTIFIER="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:COMMENT>{0,1}</REQIF:COMMENT>
  <REQIF:CREATION-TIME>{1,1}</REQIF:CREATION-TIME>
  <REQIF:REPOSITORY-ID>{0,1}</REQIF:REPOSITORY-ID>
  <REQIF:REQ-IF-TOOL-ID>{1,1}</REQIF:REQ-IF-TOOL-ID>
  <REQIF:REQ-IF-VERSION>{1,1}</REQIF:REQ-IF-VERSION>
  <REQIF:SOURCE-TOOL-ID>{1,1}</REQIF:SOURCE-TOOL-ID>
  <REQIF:TITLE>{1,1}</REQIF:TITLE>
</REQIF:REQ-IF-HEADER>
Attributes
QName Type Use
IDENTIFIER xsd:ID required
Source

<xsd:element name="REQ-IF-HEADER" type="REQIF:REQ-IF-HEADER"/>
Element REQIF:REQ-IF-HEADER / REQIF:COMMENT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xsd:element maxOccurs="1" minOccurs="0" name="COMMENT" type="xsd:string"/>
Element REQIF:REQ-IF-HEADER / REQIF:CREATION-TIME
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:dateTime
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element maxOccurs="1" minOccurs="1" name="CREATION-TIME" type="xsd:dateTime"/>
Element REQIF:REQ-IF-HEADER / REQIF:REPOSITORY-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xsd:element maxOccurs="1" minOccurs="0" name="REPOSITORY-ID" type="xsd:string"/>
Element REQIF:REQ-IF-HEADER / REQIF:REQ-IF-TOOL-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element maxOccurs="1" minOccurs="1" name="REQ-IF-TOOL-ID" type="xsd:string"/>
Element REQIF:REQ-IF-HEADER / REQIF:REQ-IF-VERSION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 1
maxOccurs 1
fixed 1.0
Source

<xsd:element fixed="1.0" maxOccurs="1" minOccurs="1" name="REQ-IF-VERSION" type="xsd:string"/>
Element REQIF:REQ-IF-HEADER / REQIF:SOURCE-TOOL-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element maxOccurs="1" minOccurs="1" name="SOURCE-TOOL-ID" type="xsd:string"/>
Element REQIF:REQ-IF-HEADER / REQIF:TITLE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:string
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TITLE" type="xsd:string"/>
Element REQIF:REQ-IF / REQIF:CORE-CONTENT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_CORE-CONTENT_REQ-IF-CONTENT
Properties
content complex
minOccurs 1
maxOccurs 1
Model
REQIF:REQ-IF-CONTENT
Children REQIF:REQ-IF-CONTENT
Instance

<REQIF:CORE-CONTENT xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:REQ-IF-CONTENT>{1,1}</REQIF:REQ-IF-CONTENT>
</REQIF:CORE-CONTENT>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="CORE-CONTENT">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="REQ-IF-CONTENT" type="REQIF:REQ-IF-CONTENT"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

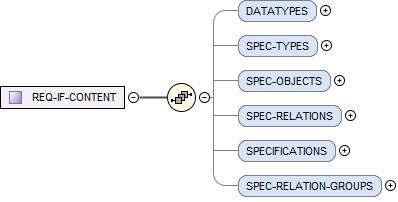

Element REQIF:REQ-IF / REQIF:CORE-CONTENT / REQIF:REQ-IF-CONTENT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_DATATYPES reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-TYPES reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-OBJECTS reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-RELATIONS reqif_xsd.tmp#REQ-IF-CONTENT_SPECIFICATIONS reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-RELATION-GROUPS reqif_xsd.tmp#REQ-IF-CONTENT
Type REQIF:REQ-IF-CONTENT
Properties
content complex
Model
REQIF:DATATYPES{0,1} , REQIF:SPEC-TYPES{0,1} , REQIF:SPEC-OBJECTS{0,1} , REQIF:SPEC-RELATIONS{0,1} , REQIF:SPECIFICATIONS{0,1} , REQIF:SPEC-RELATION-GROUPS{0,1}
Children REQIF:DATATYPES, REQIF:SPEC-OBJECTS, REQIF:SPEC-RELATION-GROUPS, REQIF:SPEC-RELATIONS, REQIF:SPEC-TYPES, REQIF:SPECIFICATIONS
Instance

<REQIF:REQ-IF-CONTENT xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPES>{0,1}</REQIF:DATATYPES>
  <REQIF:SPEC-TYPES>{0,1}</REQIF:SPEC-TYPES>
  <REQIF:SPEC-OBJECTS>{0,1}</REQIF:SPEC-OBJECTS>
  <REQIF:SPEC-RELATIONS>{0,1}</REQIF:SPEC-RELATIONS>
  <REQIF:SPECIFICATIONS>{0,1}</REQIF:SPECIFICATIONS>
  <REQIF:SPEC-RELATION-GROUPS>{0,1}</REQIF:SPEC-RELATION-GROUPS>
</REQIF:REQ-IF-CONTENT>
Source

<xsd:element name="REQ-IF-CONTENT" type="REQIF:REQ-IF-CONTENT"/>
Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_DATATYPES_DATATYPE-DEFINITION-BOOLEAN reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_DATATYPES_DATATYPE-DEFINITION-DATE reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_DATATYPES_DATATYPE-DEFINITION-ENUMERATION reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_DATATYPES_DATATYPE-DEFINITION-INTEGER reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_DATATYPES_DATATYPE-DEFINITION-REAL reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_DATATYPES_DATATYPE-DEFINITION-STRING reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_DATATYPES_DATATYPE-DEFINITION-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
REQIF:DATATYPE-DEFINITION-BOOLEAN | REQIF:DATATYPE-DEFINITION-DATE | REQIF:DATATYPE-DEFINITION-ENUMERATION | REQIF:DATATYPE-DEFINITION-INTEGER | REQIF:DATATYPE-DEFINITION-REAL | REQIF:DATATYPE-DEFINITION-STRING | REQIF:DATATYPE-DEFINITION-XHTML
Children REQIF:DATATYPE-DEFINITION-BOOLEAN, REQIF:DATATYPE-DEFINITION-DATE, REQIF:DATATYPE-DEFINITION-ENUMERATION, REQIF:DATATYPE-DEFINITION-INTEGER, REQIF:DATATYPE-DEFINITION-REAL, REQIF:DATATYPE-DEFINITION-STRING, REQIF:DATATYPE-DEFINITION-XHTML
Instance

<REQIF:DATATYPES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:DATATYPE-DEFINITION-BOOLEAN>
  <REQIF:DATATYPE-DEFINITION-DATE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:DATATYPE-DEFINITION-DATE>

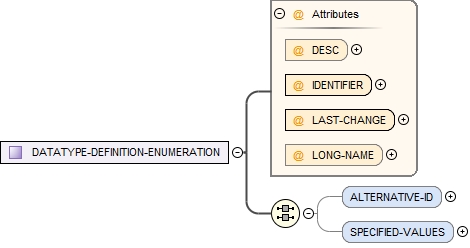

  <REQIF:DATATYPE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:DATATYPE-DEFINITION-ENUMERATION>

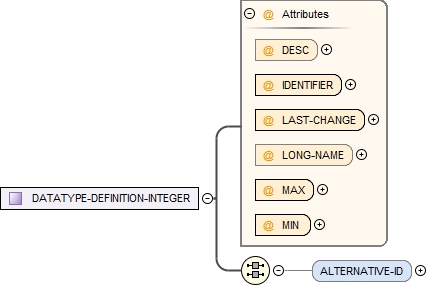

  <REQIF:DATATYPE-DEFINITION-INTEGER DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" MAX="" MIN="">{1,1}</REQIF:DATATYPE-DEFINITION-INTEGER>

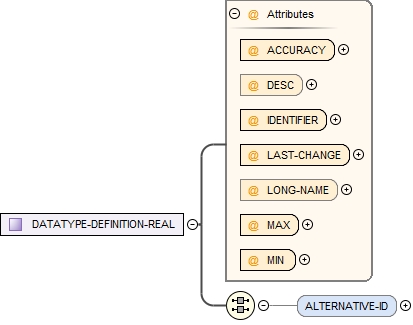

  <REQIF:DATATYPE-DEFINITION-REAL ACCURACY="" DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" MAX="" MIN="">{1,1}</REQIF:DATATYPE-DEFINITION-REAL>
  <REQIF:DATATYPE-DEFINITION-STRING DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" MAX-LENGTH="">{1,1}</REQIF:DATATYPE-DEFINITION-STRING>

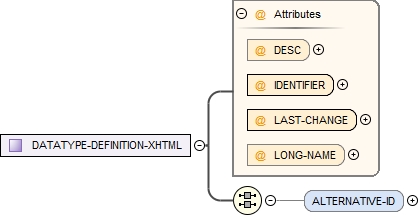

  <REQIF:DATATYPE-DEFINITION-XHTML DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:DATATYPE-DEFINITION-XHTML>
</REQIF:DATATYPES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DATATYPES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="DATATYPE-DEFINITION-BOOLEAN" type="REQIF:DATATYPE-DEFINITION-BOOLEAN"/>
      <xsd:element name="DATATYPE-DEFINITION-DATE" type="REQIF:DATATYPE-DEFINITION-DATE"/>
      <xsd:element name="DATATYPE-DEFINITION-ENUMERATION" type="REQIF:DATATYPE-DEFINITION-ENUMERATION"/>
      <xsd:element name="DATATYPE-DEFINITION-INTEGER" type="REQIF:DATATYPE-DEFINITION-INTEGER"/>
      <xsd:element name="DATATYPE-DEFINITION-REAL" type="REQIF:DATATYPE-DEFINITION-REAL"/>
      <xsd:element name="DATATYPE-DEFINITION-STRING" type="REQIF:DATATYPE-DEFINITION-STRING"/>
      <xsd:element name="DATATYPE-DEFINITION-XHTML" type="REQIF:DATATYPE-DEFINITION-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

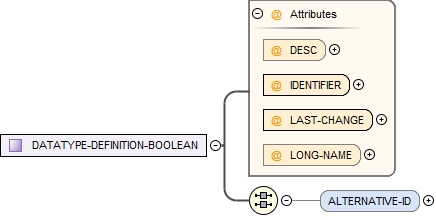

Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES / REQIF:DATATYPE-DEFINITION-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-BOOLEAN_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-BOOLEAN
Type REQIF:DATATYPE-DEFINITION-BOOLEAN
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1})
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:DATATYPE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
</REQIF:DATATYPE-DEFINITION-BOOLEAN>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="DATATYPE-DEFINITION-BOOLEAN" type="REQIF:DATATYPE-DEFINITION-BOOLEAN"/>
Element REQIF:DATATYPE-DEFINITION-BOOLEAN / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-BOOLEAN_DATATYPE-DEFINITION-BOOLEAN_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:DATATYPE-DEFINITION-BOOLEAN / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES / REQIF:DATATYPE-DEFINITION-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-DATE_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-DATE
Type REQIF:DATATYPE-DEFINITION-DATE
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1})
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:DATATYPE-DEFINITION-DATE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
</REQIF:DATATYPE-DEFINITION-DATE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="DATATYPE-DEFINITION-DATE" type="REQIF:DATATYPE-DEFINITION-DATE"/>
Element REQIF:DATATYPE-DEFINITION-DATE / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-DATE_DATATYPE-DEFINITION-DATE_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:DATATYPE-DEFINITION-DATE / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES / REQIF:DATATYPE-DEFINITION-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-ENUMERATION_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-ENUMERATION_SPECIFIED-VALUES reqif_xsd.tmp#DATATYPE-DEFINITION-ENUMERATION
Type REQIF:DATATYPE-DEFINITION-ENUMERATION
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:SPECIFIED-VALUES{0,1})
Children REQIF:ALTERNATIVE-ID, REQIF:SPECIFIED-VALUES
Instance

<REQIF:DATATYPE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:SPECIFIED-VALUES>{0,1}</REQIF:SPECIFIED-VALUES>
</REQIF:DATATYPE-DEFINITION-ENUMERATION>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="DATATYPE-DEFINITION-ENUMERATION" type="REQIF:DATATYPE-DEFINITION-ENUMERATION"/>
Element REQIF:DATATYPE-DEFINITION-ENUMERATION / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-ENUMERATION_DATATYPE-DEFINITION-ENUMERATION_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:DATATYPE-DEFINITION-ENUMERATION / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:DATATYPE-DEFINITION-ENUMERATION / REQIF:SPECIFIED-VALUES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-ENUMERATION_DATATYPE-DEFINITION-ENUMERATION_SPECIFIED-VALUES_ENUM-VALUE
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ENUM-VALUE
Instance

<REQIF:SPECIFIED-VALUES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ENUM-VALUE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ENUM-VALUE>
</REQIF:SPECIFIED-VALUES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPECIFIED-VALUES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ENUM-VALUE" type="REQIF:ENUM-VALUE"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

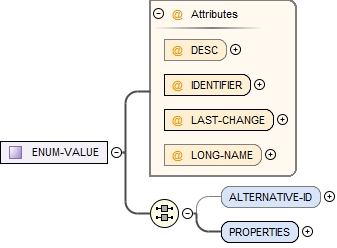

Element REQIF:DATATYPE-DEFINITION-ENUMERATION / REQIF:SPECIFIED-VALUES / REQIF:ENUM-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ENUM-VALUE_DESC NO_NAMESPACE.tmp#ENUM-VALUE_IDENTIFIER NO_NAMESPACE.tmp#ENUM-VALUE_LAST-CHANGE NO_NAMESPACE.tmp#ENUM-VALUE_LONG-NAME reqif_xsd.tmp#ENUM-VALUE_ALTERNATIVE-ID reqif_xsd.tmp#ENUM-VALUE_PROPERTIES reqif_xsd.tmp#ENUM-VALUE
Type REQIF:ENUM-VALUE
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:PROPERTIES
Instance

<REQIF:ENUM-VALUE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:PROPERTIES>{1,1}</REQIF:PROPERTIES>
</REQIF:ENUM-VALUE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ENUM-VALUE" type="REQIF:ENUM-VALUE"/>
Element REQIF:ENUM-VALUE / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ENUM-VALUE_ENUM-VALUE_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ENUM-VALUE / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ENUM-VALUE / REQIF:PROPERTIES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ENUM-VALUE_ENUM-VALUE_PROPERTIES_EMBEDDED-VALUE
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:EMBEDDED-VALUE
Instance

<REQIF:PROPERTIES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:EMBEDDED-VALUE KEY="" OTHER-CONTENT="">{1,1}</REQIF:EMBEDDED-VALUE>
</REQIF:PROPERTIES>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="PROPERTIES">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="EMBEDDED-VALUE" type="REQIF:EMBEDDED-VALUE"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

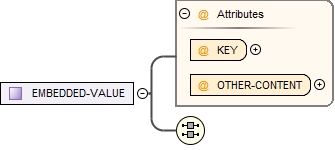

Element REQIF:ENUM-VALUE / REQIF:PROPERTIES / REQIF:EMBEDDED-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#EMBEDDED-VALUE_KEY NO_NAMESPACE.tmp#EMBEDDED-VALUE_OTHER-CONTENT reqif_xsd.tmp#EMBEDDED-VALUE
Type REQIF:EMBEDDED-VALUE
Properties
content complex
Model
ALL()
Attributes
QName Type Use
KEY xsd:integer required
OTHER-CONTENT xsd:string required
Source

<xsd:element name="EMBEDDED-VALUE" type="REQIF:EMBEDDED-VALUE"/>
Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES / REQIF:DATATYPE-DEFINITION-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_LONG-NAME NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_MAX NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_MIN reqif_xsd.tmp#DATATYPE-DEFINITION-INTEGER_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-INTEGER
Type REQIF:DATATYPE-DEFINITION-INTEGER
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1})
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:DATATYPE-DEFINITION-INTEGER DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" MAX="" MIN="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
</REQIF:DATATYPE-DEFINITION-INTEGER>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MAX xsd:integer required
MIN xsd:integer required
Source

<xsd:element name="DATATYPE-DEFINITION-INTEGER" type="REQIF:DATATYPE-DEFINITION-INTEGER"/>
Element REQIF:DATATYPE-DEFINITION-INTEGER / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-INTEGER_DATATYPE-DEFINITION-INTEGER_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:DATATYPE-DEFINITION-INTEGER / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES / REQIF:DATATYPE-DEFINITION-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_ACCURACY NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_LONG-NAME NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_MAX NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_MIN reqif_xsd.tmp#DATATYPE-DEFINITION-REAL_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-REAL
Type REQIF:DATATYPE-DEFINITION-REAL
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1})
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:DATATYPE-DEFINITION-REAL ACCURACY="" DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" MAX="" MIN="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
</REQIF:DATATYPE-DEFINITION-REAL>
Attributes
QName Type Use
ACCURACY xsd:integer required
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MAX xsd:double required
MIN xsd:double required
Source

<xsd:element name="DATATYPE-DEFINITION-REAL" type="REQIF:DATATYPE-DEFINITION-REAL"/>
Element REQIF:DATATYPE-DEFINITION-REAL / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-REAL_DATATYPE-DEFINITION-REAL_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:DATATYPE-DEFINITION-REAL / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>

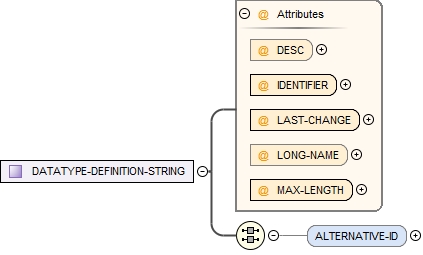

Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES / REQIF:DATATYPE-DEFINITION-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_LONG-NAME NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_MAX-LENGTH reqif_xsd.tmp#DATATYPE-DEFINITION-STRING_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-STRING
Type REQIF:DATATYPE-DEFINITION-STRING
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1})
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:DATATYPE-DEFINITION-STRING DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" MAX-LENGTH="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
</REQIF:DATATYPE-DEFINITION-STRING>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MAX-LENGTH xsd:integer required
Source

<xsd:element name="DATATYPE-DEFINITION-STRING" type="REQIF:DATATYPE-DEFINITION-STRING"/>
Element REQIF:DATATYPE-DEFINITION-STRING / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-STRING_DATATYPE-DEFINITION-STRING_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:DATATYPE-DEFINITION-STRING / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:REQ-IF-CONTENT / REQIF:DATATYPES / REQIF:DATATYPE-DEFINITION-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-XHTML_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-XHTML
Type REQIF:DATATYPE-DEFINITION-XHTML
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1})
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:DATATYPE-DEFINITION-XHTML DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
</REQIF:DATATYPE-DEFINITION-XHTML>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="DATATYPE-DEFINITION-XHTML" type="REQIF:DATATYPE-DEFINITION-XHTML"/>
Element REQIF:DATATYPE-DEFINITION-XHTML / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#DATATYPE-DEFINITION-XHTML_DATATYPE-DEFINITION-XHTML_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:DATATYPE-DEFINITION-XHTML / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-TYPES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPEC-TYPES_RELATION-GROUP-TYPE reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPEC-TYPES_SPEC-OBJECT-TYPE reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPEC-TYPES_SPEC-RELATION-TYPE reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPEC-TYPES_SPECIFICATION-TYPE
Properties
content complex
minOccurs 0
maxOccurs 1
Model
REQIF:RELATION-GROUP-TYPE | REQIF:SPEC-OBJECT-TYPE | REQIF:SPEC-RELATION-TYPE | REQIF:SPECIFICATION-TYPE
Children REQIF:RELATION-GROUP-TYPE, REQIF:SPEC-OBJECT-TYPE, REQIF:SPEC-RELATION-TYPE, REQIF:SPECIFICATION-TYPE
Instance

<REQIF:SPEC-TYPES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:RELATION-GROUP-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:RELATION-GROUP-TYPE>
  <REQIF:SPEC-OBJECT-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPEC-OBJECT-TYPE>
  <REQIF:SPEC-RELATION-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPEC-RELATION-TYPE>

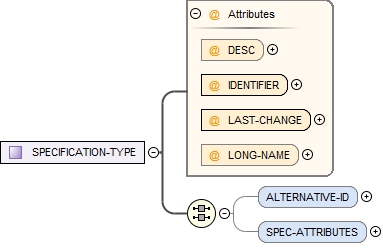

  <REQIF:SPECIFICATION-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPECIFICATION-TYPE>
</REQIF:SPEC-TYPES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-TYPES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="RELATION-GROUP-TYPE" type="REQIF:RELATION-GROUP-TYPE"/>
      <xsd:element name="SPEC-OBJECT-TYPE" type="REQIF:SPEC-OBJECT-TYPE"/>
      <xsd:element name="SPEC-RELATION-TYPE" type="REQIF:SPEC-RELATION-TYPE"/>
      <xsd:element name="SPECIFICATION-TYPE" type="REQIF:SPECIFICATION-TYPE"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

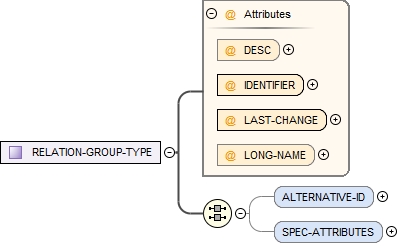

Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-TYPES / REQIF:RELATION-GROUP-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_DESC NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_IDENTIFIER NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_LONG-NAME reqif_xsd.tmp#RELATION-GROUP-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#RELATION-GROUP-TYPE_SPEC-ATTRIBUTES reqif_xsd.tmp#RELATION-GROUP-TYPE
Type REQIF:RELATION-GROUP-TYPE
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:SPEC-ATTRIBUTES{0,1})
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Instance

<REQIF:RELATION-GROUP-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:SPEC-ATTRIBUTES>{0,1}</REQIF:SPEC-ATTRIBUTES>
</REQIF:RELATION-GROUP-TYPE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="RELATION-GROUP-TYPE" type="REQIF:RELATION-GROUP-TYPE"/>
Element REQIF:RELATION-GROUP-TYPE / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:RELATION-GROUP-TYPE / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-BOOLEAN reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-DATE reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-ENUMERATION reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-INTEGER reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-REAL reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-STRING reqif_xsd.tmp#RELATION-GROUP-TYPE_RELATION-GROUP-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-BOOLEAN, REQIF:ATTRIBUTE-DEFINITION-DATE, REQIF:ATTRIBUTE-DEFINITION-ENUMERATION, REQIF:ATTRIBUTE-DEFINITION-INTEGER, REQIF:ATTRIBUTE-DEFINITION-REAL, REQIF:ATTRIBUTE-DEFINITION-STRING, REQIF:ATTRIBUTE-DEFINITION-XHTML
Instance

<REQIF:SPEC-ATTRIBUTES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
  <REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-DATE>
  <REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
  <REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
  <REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-REAL>
  <REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-STRING>
  <REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-XHTML>
</REQIF:SPEC-ATTRIBUTES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

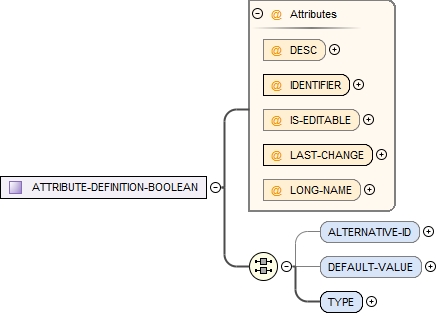

Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN
Type REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
Element REQIF:ATTRIBUTE-DEFINITION-BOOLEAN / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ATTRIBUTE-DEFINITION-BOOLEAN_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-BOOLEAN / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ATTRIBUTE-DEFINITION-BOOLEAN / REQIF:DEFAULT-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ATTRIBUTE-DEFINITION-BOOLEAN_DEFAULT-VALUE_ATTRIBUTE-VALUE-BOOLEAN
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-BOOLEAN
Instance

<REQIF:DEFAULT-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">

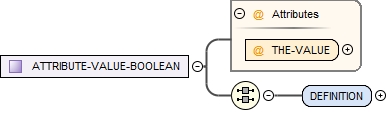

  <REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
</REQIF:DEFAULT-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-BOOLEAN / REQIF:DEFAULT-VALUE / REQIF:ATTRIBUTE-VALUE-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-BOOLEAN_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN
Type REQIF:ATTRIBUTE-VALUE-BOOLEAN
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
Attributes
QName Type Use
THE-VALUE xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
Element REQIF:ATTRIBUTE-VALUE-BOOLEAN / REQIF:DEFINITION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN_ATTRIBUTE-VALUE-BOOLEAN_DEFINITION_ATTRIBUTE-DEFINITION-BOOLEAN-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF
Instance

<REQIF:DEFINITION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF>
</REQIF:DEFINITION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-BOOLEAN / REQIF:DEFINITION / REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-DEFINITION-BOOLEAN / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ATTRIBUTE-DEFINITION-BOOLEAN_TYPE_DATATYPE-DEFINITION-BOOLEAN-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:DATATYPE-DEFINITION-BOOLEAN-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-BOOLEAN-REF>{1,1}</REQIF:DATATYPE-DEFINITION-BOOLEAN-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="DATATYPE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-BOOLEAN / REQIF:TYPE / REQIF:DATATYPE-DEFINITION-BOOLEAN-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="DATATYPE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE
Type REQIF:ATTRIBUTE-DEFINITION-DATE
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-DATE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
Element REQIF:ATTRIBUTE-DEFINITION-DATE / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ATTRIBUTE-DEFINITION-DATE_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-DATE / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ATTRIBUTE-DEFINITION-DATE / REQIF:DEFAULT-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ATTRIBUTE-DEFINITION-DATE_DEFAULT-VALUE_ATTRIBUTE-VALUE-DATE
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-DATE
Instance

<REQIF:DEFAULT-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-DATE>
</REQIF:DEFAULT-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-DATE / REQIF:DEFAULT-VALUE / REQIF:ATTRIBUTE-VALUE-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-DATE_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE
Type REQIF:ATTRIBUTE-VALUE-DATE
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-DATE>
Attributes
QName Type Use
THE-VALUE xsd:dateTime required
Source

<xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
Element REQIF:ATTRIBUTE-VALUE-DATE / REQIF:DEFINITION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE_ATTRIBUTE-VALUE-DATE_DEFINITION_ATTRIBUTE-DEFINITION-DATE-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-DATE-REF
Instance

<REQIF:DEFINITION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-DATE-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-DATE-REF>
</REQIF:DEFINITION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="ATTRIBUTE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-DATE / REQIF:DEFINITION / REQIF:ATTRIBUTE-DEFINITION-DATE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-DEFINITION-DATE / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ATTRIBUTE-DEFINITION-DATE_TYPE_DATATYPE-DEFINITION-DATE-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:DATATYPE-DEFINITION-DATE-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-DATE-REF>{1,1}</REQIF:DATATYPE-DEFINITION-DATE-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="DATATYPE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-DATE / REQIF:TYPE / REQIF:DATATYPE-DEFINITION-DATE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="DATATYPE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>

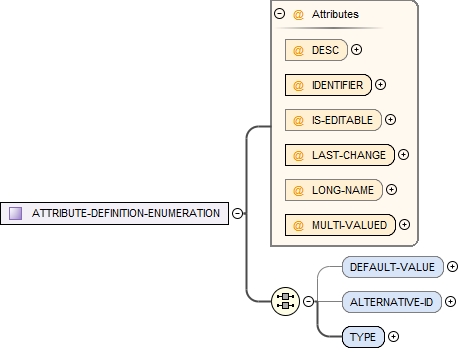

Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LONG-NAME NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_MULTI-VALUED reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION
Type REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MULTI-VALUED xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
Element REQIF:ATTRIBUTE-DEFINITION-ENUMERATION / REQIF:DEFAULT-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ATTRIBUTE-DEFINITION-ENUMERATION_DEFAULT-VALUE_ATTRIBUTE-VALUE-ENUMERATION
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-ENUMERATION
Instance

<REQIF:DEFAULT-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-ENUMERATION>{1,1}</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
</REQIF:DEFAULT-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-ENUMERATION / REQIF:DEFAULT-VALUE / REQIF:ATTRIBUTE-VALUE-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_VALUES reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION
Type REQIF:ATTRIBUTE-VALUE-ENUMERATION
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:VALUES
Instance

<REQIF:ATTRIBUTE-VALUE-ENUMERATION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
  <REQIF:VALUES>{0,1}</REQIF:VALUES>
</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
Source

<xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
Element REQIF:ATTRIBUTE-VALUE-ENUMERATION / REQIF:DEFINITION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_ATTRIBUTE-VALUE-ENUMERATION_DEFINITION_ATTRIBUTE-DEFINITION-ENUMERATION-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF
Instance

<REQIF:DEFINITION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF>
</REQIF:DEFINITION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-ENUMERATION / REQIF:DEFINITION / REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-VALUE-ENUMERATION / REQIF:VALUES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_ATTRIBUTE-VALUE-ENUMERATION_VALUES_ENUM-VALUE-REF
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ENUM-VALUE-REF
Instance

<REQIF:VALUES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ENUM-VALUE-REF>{1,1}</REQIF:ENUM-VALUE-REF>
</REQIF:VALUES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ENUM-VALUE-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-ENUMERATION / REQIF:VALUES / REQIF:ENUM-VALUE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ENUM-VALUE-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-DEFINITION-ENUMERATION / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ATTRIBUTE-DEFINITION-ENUMERATION_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-ENUMERATION / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ATTRIBUTE-DEFINITION-ENUMERATION / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ATTRIBUTE-DEFINITION-ENUMERATION_TYPE_DATATYPE-DEFINITION-ENUMERATION-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:DATATYPE-DEFINITION-ENUMERATION-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-ENUMERATION-REF>{1,1}</REQIF:DATATYPE-DEFINITION-ENUMERATION-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="DATATYPE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-ENUMERATION / REQIF:TYPE / REQIF:DATATYPE-DEFINITION-ENUMERATION-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="DATATYPE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER
Type REQIF:ATTRIBUTE-DEFINITION-INTEGER
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
Element REQIF:ATTRIBUTE-DEFINITION-INTEGER / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ATTRIBUTE-DEFINITION-INTEGER_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-INTEGER / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ATTRIBUTE-DEFINITION-INTEGER / REQIF:DEFAULT-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ATTRIBUTE-DEFINITION-INTEGER_DEFAULT-VALUE_ATTRIBUTE-VALUE-INTEGER
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-INTEGER
Instance

<REQIF:DEFAULT-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-INTEGER>
</REQIF:DEFAULT-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-INTEGER / REQIF:DEFAULT-VALUE / REQIF:ATTRIBUTE-VALUE-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-INTEGER_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER
Type REQIF:ATTRIBUTE-VALUE-INTEGER
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-INTEGER>
Attributes
QName Type Use
THE-VALUE xsd:integer required
Source

<xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
Element REQIF:ATTRIBUTE-VALUE-INTEGER / REQIF:DEFINITION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER_ATTRIBUTE-VALUE-INTEGER_DEFINITION_ATTRIBUTE-DEFINITION-INTEGER-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF
Instance

<REQIF:DEFINITION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF>
</REQIF:DEFINITION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-INTEGER / REQIF:DEFINITION / REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-DEFINITION-INTEGER / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ATTRIBUTE-DEFINITION-INTEGER_TYPE_DATATYPE-DEFINITION-INTEGER-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:DATATYPE-DEFINITION-INTEGER-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-INTEGER-REF>{1,1}</REQIF:DATATYPE-DEFINITION-INTEGER-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="DATATYPE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-INTEGER / REQIF:TYPE / REQIF:DATATYPE-DEFINITION-INTEGER-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="DATATYPE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL
Type REQIF:ATTRIBUTE-DEFINITION-REAL
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-REAL>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
Element REQIF:ATTRIBUTE-DEFINITION-REAL / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ATTRIBUTE-DEFINITION-REAL_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-REAL / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ATTRIBUTE-DEFINITION-REAL / REQIF:DEFAULT-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ATTRIBUTE-DEFINITION-REAL_DEFAULT-VALUE_ATTRIBUTE-VALUE-REAL
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-REAL
Instance

<REQIF:DEFAULT-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-REAL>
</REQIF:DEFAULT-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-REAL / REQIF:DEFAULT-VALUE / REQIF:ATTRIBUTE-VALUE-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-REAL_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL
Type REQIF:ATTRIBUTE-VALUE-REAL
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-REAL>
Attributes
QName Type Use
THE-VALUE xsd:double required
Source

<xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
Element REQIF:ATTRIBUTE-VALUE-REAL / REQIF:DEFINITION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL_ATTRIBUTE-VALUE-REAL_DEFINITION_ATTRIBUTE-DEFINITION-REAL-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-REAL-REF
Instance

<REQIF:DEFINITION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-REAL-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-REAL-REF>
</REQIF:DEFINITION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="ATTRIBUTE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-REAL / REQIF:DEFINITION / REQIF:ATTRIBUTE-DEFINITION-REAL-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-DEFINITION-REAL / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ATTRIBUTE-DEFINITION-REAL_TYPE_DATATYPE-DEFINITION-REAL-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:DATATYPE-DEFINITION-REAL-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-REAL-REF>{1,1}</REQIF:DATATYPE-DEFINITION-REAL-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="DATATYPE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-REAL / REQIF:TYPE / REQIF:DATATYPE-DEFINITION-REAL-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="DATATYPE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING
Type REQIF:ATTRIBUTE-DEFINITION-STRING
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-STRING>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
Element REQIF:ATTRIBUTE-DEFINITION-STRING / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ATTRIBUTE-DEFINITION-STRING_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-STRING / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ATTRIBUTE-DEFINITION-STRING / REQIF:DEFAULT-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ATTRIBUTE-DEFINITION-STRING_DEFAULT-VALUE_ATTRIBUTE-VALUE-STRING
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-STRING
Instance

<REQIF:DEFAULT-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-STRING>
</REQIF:DEFAULT-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-STRING / REQIF:DEFAULT-VALUE / REQIF:ATTRIBUTE-VALUE-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-STRING_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING
Type REQIF:ATTRIBUTE-VALUE-STRING
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-STRING>
Attributes
QName Type Use
THE-VALUE xsd:string required
Source

<xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
Element REQIF:ATTRIBUTE-VALUE-STRING / REQIF:DEFINITION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING_ATTRIBUTE-VALUE-STRING_DEFINITION_ATTRIBUTE-DEFINITION-STRING-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-STRING-REF
Instance

<REQIF:DEFINITION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-STRING-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-STRING-REF>
</REQIF:DEFINITION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="ATTRIBUTE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-STRING / REQIF:DEFINITION / REQIF:ATTRIBUTE-DEFINITION-STRING-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-DEFINITION-STRING / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ATTRIBUTE-DEFINITION-STRING_TYPE_DATATYPE-DEFINITION-STRING-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:DATATYPE-DEFINITION-STRING-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-STRING-REF>{1,1}</REQIF:DATATYPE-DEFINITION-STRING-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="DATATYPE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-STRING / REQIF:TYPE / REQIF:DATATYPE-DEFINITION-STRING-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="DATATYPE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:RELATION-GROUP-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML
Type REQIF:ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-XHTML>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
Element REQIF:ATTRIBUTE-DEFINITION-XHTML / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ATTRIBUTE-DEFINITION-XHTML_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-XHTML / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:ATTRIBUTE-DEFINITION-XHTML / REQIF:DEFAULT-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ATTRIBUTE-DEFINITION-XHTML_DEFAULT-VALUE_ATTRIBUTE-VALUE-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-XHTML
Instance

<REQIF:DEFAULT-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="">{1,1}</REQIF:ATTRIBUTE-VALUE-XHTML>
</REQIF:DEFAULT-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-XHTML / REQIF:DEFAULT-VALUE / REQIF:ATTRIBUTE-VALUE-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-XHTML_IS-SIMPLIFIED reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-ORIGINAL-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML
Type REQIF:ATTRIBUTE-VALUE-XHTML
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:THE-ORIGINAL-VALUE, REQIF:THE-VALUE
Instance

<REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:THE-VALUE>{1,1}</REQIF:THE-VALUE>
  <REQIF:THE-ORIGINAL-VALUE>{0,1}</REQIF:THE-ORIGINAL-VALUE>
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-XHTML>
Attributes
QName Type Use
IS-SIMPLIFIED xsd:boolean optional
Source

<xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
Element REQIF:ATTRIBUTE-VALUE-XHTML / REQIF:THE-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram xhtml.tmp#xhtml.BlkStruct.class_p xhtml.tmp#xhtml.BlkStruct.class_div xhtml.tmp#xhtml.BlkStruct.class reqif_xsd.tmp#XHTML-CONTENT
Type REQIF:XHTML-CONTENT
Properties
content complex
minOccurs 1
maxOccurs 1
Model
p | div
Children div, p
Instance

<REQIF:THE-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd" xmlns="http://www.w3.org/1999/xhtml">
  <p class="" id="" xml:lang="" xml:space="preserve" style="" title="">{1,1}</p>
  <div class="" id="" xml:lang="" xml:space="preserve" style="" title="">{1,1}</div>
</REQIF:THE-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="THE-VALUE" type="REQIF:XHTML-CONTENT"/>
Element REQIF:ATTRIBUTE-VALUE-XHTML / REQIF:THE-ORIGINAL-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram xhtml.tmp#xhtml.BlkStruct.class_p xhtml.tmp#xhtml.BlkStruct.class_div xhtml.tmp#xhtml.BlkStruct.class reqif_xsd.tmp#XHTML-CONTENT
Type REQIF:XHTML-CONTENT
Properties
content complex
minOccurs 0
maxOccurs 1
Model
p | div
Children div, p
Instance

<REQIF:THE-ORIGINAL-VALUE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd" xmlns="http://www.w3.org/1999/xhtml">
  <p class="" id="" xml:lang="" xml:space="preserve" style="" title="">{1,1}</p>
  <div class="" id="" xml:lang="" xml:space="preserve" style="" title="">{1,1}</div>
</REQIF:THE-ORIGINAL-VALUE>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="THE-ORIGINAL-VALUE" type="REQIF:XHTML-CONTENT"/>
Element REQIF:ATTRIBUTE-VALUE-XHTML / REQIF:DEFINITION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_ATTRIBUTE-VALUE-XHTML_DEFINITION_ATTRIBUTE-DEFINITION-XHTML-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-XHTML-REF
Instance

<REQIF:DEFINITION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-XHTML-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-XHTML-REF>
</REQIF:DEFINITION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="ATTRIBUTE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-VALUE-XHTML / REQIF:DEFINITION / REQIF:ATTRIBUTE-DEFINITION-XHTML-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:ATTRIBUTE-DEFINITION-XHTML / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ATTRIBUTE-DEFINITION-XHTML_TYPE_DATATYPE-DEFINITION-XHTML-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:DATATYPE-DEFINITION-XHTML-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DATATYPE-DEFINITION-XHTML-REF>{1,1}</REQIF:DATATYPE-DEFINITION-XHTML-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="DATATYPE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:ATTRIBUTE-DEFINITION-XHTML / REQIF:TYPE / REQIF:DATATYPE-DEFINITION-XHTML-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="DATATYPE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-TYPES / REQIF:SPEC-OBJECT-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_DESC NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_IDENTIFIER NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_LONG-NAME reqif_xsd.tmp#SPEC-OBJECT-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES reqif_xsd.tmp#SPEC-OBJECT-TYPE
Type REQIF:SPEC-OBJECT-TYPE
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:SPEC-ATTRIBUTES{0,1})
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Instance

<REQIF:SPEC-OBJECT-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:SPEC-ATTRIBUTES>{0,1}</REQIF:SPEC-ATTRIBUTES>
</REQIF:SPEC-OBJECT-TYPE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPEC-OBJECT-TYPE" type="REQIF:SPEC-OBJECT-TYPE"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-BOOLEAN reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-DATE reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-ENUMERATION reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-INTEGER reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-REAL reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-STRING reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-BOOLEAN, REQIF:ATTRIBUTE-DEFINITION-DATE, REQIF:ATTRIBUTE-DEFINITION-ENUMERATION, REQIF:ATTRIBUTE-DEFINITION-INTEGER, REQIF:ATTRIBUTE-DEFINITION-REAL, REQIF:ATTRIBUTE-DEFINITION-STRING, REQIF:ATTRIBUTE-DEFINITION-XHTML
Instance

<REQIF:SPEC-ATTRIBUTES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
  <REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-DATE>
  <REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
  <REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
  <REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-REAL>
  <REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-STRING>
  <REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-XHTML>
</REQIF:SPEC-ATTRIBUTES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN
Type REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE
Type REQIF:ATTRIBUTE-DEFINITION-DATE
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-DATE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LONG-NAME NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_MULTI-VALUED reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION
Type REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MULTI-VALUED xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER
Type REQIF:ATTRIBUTE-DEFINITION-INTEGER
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL
Type REQIF:ATTRIBUTE-DEFINITION-REAL
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-REAL>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING
Type REQIF:ATTRIBUTE-DEFINITION-STRING
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-STRING>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
Element REQIF:SPEC-OBJECT-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML
Type REQIF:ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-XHTML>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-TYPES / REQIF:SPEC-RELATION-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_DESC NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_IDENTIFIER NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_LONG-NAME reqif_xsd.tmp#SPEC-RELATION-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-ATTRIBUTES reqif_xsd.tmp#SPEC-RELATION-TYPE
Type REQIF:SPEC-RELATION-TYPE
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:SPEC-ATTRIBUTES{0,1})
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Instance

<REQIF:SPEC-RELATION-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:SPEC-ATTRIBUTES>{0,1}</REQIF:SPEC-ATTRIBUTES>
</REQIF:SPEC-RELATION-TYPE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPEC-RELATION-TYPE" type="REQIF:SPEC-RELATION-TYPE"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-RELATION-TYPE / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-BOOLEAN reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-DATE reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-ENUMERATION reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-INTEGER reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-REAL reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-STRING reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-RELATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-BOOLEAN, REQIF:ATTRIBUTE-DEFINITION-DATE, REQIF:ATTRIBUTE-DEFINITION-ENUMERATION, REQIF:ATTRIBUTE-DEFINITION-INTEGER, REQIF:ATTRIBUTE-DEFINITION-REAL, REQIF:ATTRIBUTE-DEFINITION-STRING, REQIF:ATTRIBUTE-DEFINITION-XHTML
Instance

<REQIF:SPEC-ATTRIBUTES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
  <REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-DATE>
  <REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
  <REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
  <REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-REAL>
  <REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-STRING>
  <REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-XHTML>
</REQIF:SPEC-ATTRIBUTES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN
Type REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE
Type REQIF:ATTRIBUTE-DEFINITION-DATE
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-DATE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LONG-NAME NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_MULTI-VALUED reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION
Type REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MULTI-VALUED xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER
Type REQIF:ATTRIBUTE-DEFINITION-INTEGER
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL
Type REQIF:ATTRIBUTE-DEFINITION-REAL
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-REAL>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING
Type REQIF:ATTRIBUTE-DEFINITION-STRING
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-STRING>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
Element REQIF:SPEC-RELATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML
Type REQIF:ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-XHTML>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-TYPES / REQIF:SPECIFICATION-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPECIFICATION-TYPE_DESC NO_NAMESPACE.tmp#SPECIFICATION-TYPE_IDENTIFIER NO_NAMESPACE.tmp#SPECIFICATION-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#SPECIFICATION-TYPE_LONG-NAME reqif_xsd.tmp#SPECIFICATION-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#SPECIFICATION-TYPE_SPEC-ATTRIBUTES reqif_xsd.tmp#SPECIFICATION-TYPE
Type REQIF:SPECIFICATION-TYPE
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:SPEC-ATTRIBUTES{0,1})
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Instance

<REQIF:SPECIFICATION-TYPE DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:SPEC-ATTRIBUTES>{0,1}</REQIF:SPEC-ATTRIBUTES>
</REQIF:SPECIFICATION-TYPE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPECIFICATION-TYPE" type="REQIF:SPECIFICATION-TYPE"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPECIFICATION-TYPE / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-BOOLEAN reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-DATE reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-ENUMERATION reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-INTEGER reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-REAL reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-STRING reqif_xsd.tmp#SPECIFICATION-TYPE_SPECIFICATION-TYPE_SPEC-ATTRIBUTES_ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-BOOLEAN, REQIF:ATTRIBUTE-DEFINITION-DATE, REQIF:ATTRIBUTE-DEFINITION-ENUMERATION, REQIF:ATTRIBUTE-DEFINITION-INTEGER, REQIF:ATTRIBUTE-DEFINITION-REAL, REQIF:ATTRIBUTE-DEFINITION-STRING, REQIF:ATTRIBUTE-DEFINITION-XHTML
Instance

<REQIF:SPEC-ATTRIBUTES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
  <REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-DATE>
  <REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
  <REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
  <REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-REAL>
  <REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-STRING>
  <REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:ATTRIBUTE-DEFINITION-XHTML>
</REQIF:SPEC-ATTRIBUTES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN
Type REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-BOOLEAN DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE
Type REQIF:ATTRIBUTE-DEFINITION-DATE
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-DATE DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-DATE>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LONG-NAME NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_MULTI-VALUED reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION
Type REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-ENUMERATION DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" MULTI-VALUED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MULTI-VALUED xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER
Type REQIF:ATTRIBUTE-DEFINITION-INTEGER
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-INTEGER DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-INTEGER>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL
Type REQIF:ATTRIBUTE-DEFINITION-REAL
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-REAL DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-REAL>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING
Type REQIF:ATTRIBUTE-DEFINITION-STRING
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-STRING DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-STRING>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
Element REQIF:SPECIFICATION-TYPE / REQIF:SPEC-ATTRIBUTES / REQIF:ATTRIBUTE-DEFINITION-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_TYPE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML
Type REQIF:ATTRIBUTE-DEFINITION-XHTML
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Instance

<REQIF:ATTRIBUTE-DEFINITION-XHTML DESC="" IDENTIFIER="" IS-EDITABLE="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:DEFAULT-VALUE>{0,1}</REQIF:DEFAULT-VALUE>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:ATTRIBUTE-DEFINITION-XHTML>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-OBJECTS
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPEC-OBJECTS_SPEC-OBJECT
Properties
content complex
minOccurs 0
maxOccurs 1
Model
REQIF:SPEC-OBJECT
Children REQIF:SPEC-OBJECT
Instance

<REQIF:SPEC-OBJECTS xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-OBJECT DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPEC-OBJECT>
</REQIF:SPEC-OBJECTS>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-OBJECTS">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="SPEC-OBJECT" type="REQIF:SPEC-OBJECT"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-OBJECTS / REQIF:SPEC-OBJECT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-OBJECT_DESC NO_NAMESPACE.tmp#SPEC-OBJECT_IDENTIFIER NO_NAMESPACE.tmp#SPEC-OBJECT_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-OBJECT_LONG-NAME reqif_xsd.tmp#SPEC-OBJECT_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-OBJECT_VALUES reqif_xsd.tmp#SPEC-OBJECT_TYPE reqif_xsd.tmp#SPEC-OBJECT
Type REQIF:SPEC-OBJECT
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:VALUES{0,1} REQIF:TYPE)
Children REQIF:ALTERNATIVE-ID, REQIF:TYPE, REQIF:VALUES
Instance

<REQIF:SPEC-OBJECT DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:VALUES>{0,1}</REQIF:VALUES>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:SPEC-OBJECT>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPEC-OBJECT" type="REQIF:SPEC-OBJECT"/>
Element REQIF:SPEC-OBJECT / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-OBJECT / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:SPEC-OBJECT / REQIF:VALUES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_VALUES_ATTRIBUTE-VALUE-BOOLEAN reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_VALUES_ATTRIBUTE-VALUE-DATE reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_VALUES_ATTRIBUTE-VALUE-ENUMERATION reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_VALUES_ATTRIBUTE-VALUE-INTEGER reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_VALUES_ATTRIBUTE-VALUE-REAL reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_VALUES_ATTRIBUTE-VALUE-STRING reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_VALUES_ATTRIBUTE-VALUE-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-BOOLEAN, REQIF:ATTRIBUTE-VALUE-DATE, REQIF:ATTRIBUTE-VALUE-ENUMERATION, REQIF:ATTRIBUTE-VALUE-INTEGER, REQIF:ATTRIBUTE-VALUE-REAL, REQIF:ATTRIBUTE-VALUE-STRING, REQIF:ATTRIBUTE-VALUE-XHTML
Instance

<REQIF:VALUES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
  <REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-DATE>
  <REQIF:ATTRIBUTE-VALUE-ENUMERATION>{1,1}</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
  <REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-INTEGER>
  <REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-REAL>
  <REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-STRING>
  <REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="">{1,1}</REQIF:ATTRIBUTE-VALUE-XHTML>
</REQIF:VALUES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
      <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
      <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
      <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
      <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
      <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
      <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-OBJECT / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-BOOLEAN_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN
Type REQIF:ATTRIBUTE-VALUE-BOOLEAN
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
Attributes
QName Type Use
THE-VALUE xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
Element REQIF:SPEC-OBJECT / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-DATE_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE
Type REQIF:ATTRIBUTE-VALUE-DATE
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-DATE>
Attributes
QName Type Use
THE-VALUE xsd:dateTime required
Source

<xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
Element REQIF:SPEC-OBJECT / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_VALUES reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION
Type REQIF:ATTRIBUTE-VALUE-ENUMERATION
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:VALUES
Instance

<REQIF:ATTRIBUTE-VALUE-ENUMERATION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
  <REQIF:VALUES>{0,1}</REQIF:VALUES>
</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
Source

<xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
Element REQIF:SPEC-OBJECT / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-INTEGER_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER
Type REQIF:ATTRIBUTE-VALUE-INTEGER
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-INTEGER>
Attributes
QName Type Use
THE-VALUE xsd:integer required
Source

<xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
Element REQIF:SPEC-OBJECT / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-REAL_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL
Type REQIF:ATTRIBUTE-VALUE-REAL
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-REAL>
Attributes
QName Type Use
THE-VALUE xsd:double required
Source

<xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
Element REQIF:SPEC-OBJECT / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-STRING_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING
Type REQIF:ATTRIBUTE-VALUE-STRING
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-STRING>
Attributes
QName Type Use
THE-VALUE xsd:string required
Source

<xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
Element REQIF:SPEC-OBJECT / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-XHTML_IS-SIMPLIFIED reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-ORIGINAL-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML
Type REQIF:ATTRIBUTE-VALUE-XHTML
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:THE-ORIGINAL-VALUE, REQIF:THE-VALUE
Instance

<REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:THE-VALUE>{1,1}</REQIF:THE-VALUE>
  <REQIF:THE-ORIGINAL-VALUE>{0,1}</REQIF:THE-ORIGINAL-VALUE>
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-XHTML>
Attributes
QName Type Use
IS-SIMPLIFIED xsd:boolean optional
Source

<xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
Element REQIF:SPEC-OBJECT / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-OBJECT_SPEC-OBJECT_TYPE_SPEC-OBJECT-TYPE-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPEC-OBJECT-TYPE-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-OBJECT-TYPE-REF>{1,1}</REQIF:SPEC-OBJECT-TYPE-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPEC-OBJECT-TYPE-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-OBJECT / REQIF:TYPE / REQIF:SPEC-OBJECT-TYPE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="SPEC-OBJECT-TYPE-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-RELATIONS
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPEC-RELATIONS_SPEC-RELATION
Properties
content complex
minOccurs 0
maxOccurs 1
Model
REQIF:SPEC-RELATION
Children REQIF:SPEC-RELATION
Instance

<REQIF:SPEC-RELATIONS xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-RELATION DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPEC-RELATION>
</REQIF:SPEC-RELATIONS>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-RELATIONS">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="SPEC-RELATION" type="REQIF:SPEC-RELATION"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-RELATIONS / REQIF:SPEC-RELATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-RELATION_DESC NO_NAMESPACE.tmp#SPEC-RELATION_IDENTIFIER NO_NAMESPACE.tmp#SPEC-RELATION_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-RELATION_LONG-NAME reqif_xsd.tmp#SPEC-RELATION_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-RELATION_VALUES reqif_xsd.tmp#SPEC-RELATION_SOURCE reqif_xsd.tmp#SPEC-RELATION_TARGET reqif_xsd.tmp#SPEC-RELATION_TYPE reqif_xsd.tmp#SPEC-RELATION
Type REQIF:SPEC-RELATION
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:VALUES{0,1} REQIF:SOURCE REQIF:TARGET REQIF:TYPE)
Children REQIF:ALTERNATIVE-ID, REQIF:SOURCE, REQIF:TARGET, REQIF:TYPE, REQIF:VALUES
Instance

<REQIF:SPEC-RELATION DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:VALUES>{0,1}</REQIF:VALUES>
  <REQIF:SOURCE>{1,1}</REQIF:SOURCE>
  <REQIF:TARGET>{1,1}</REQIF:TARGET>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:SPEC-RELATION>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPEC-RELATION" type="REQIF:SPEC-RELATION"/>
Element REQIF:SPEC-RELATION / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-RELATION / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:SPEC-RELATION / REQIF:VALUES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_VALUES_ATTRIBUTE-VALUE-BOOLEAN reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_VALUES_ATTRIBUTE-VALUE-DATE reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_VALUES_ATTRIBUTE-VALUE-ENUMERATION reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_VALUES_ATTRIBUTE-VALUE-INTEGER reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_VALUES_ATTRIBUTE-VALUE-REAL reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_VALUES_ATTRIBUTE-VALUE-STRING reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_VALUES_ATTRIBUTE-VALUE-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-BOOLEAN, REQIF:ATTRIBUTE-VALUE-DATE, REQIF:ATTRIBUTE-VALUE-ENUMERATION, REQIF:ATTRIBUTE-VALUE-INTEGER, REQIF:ATTRIBUTE-VALUE-REAL, REQIF:ATTRIBUTE-VALUE-STRING, REQIF:ATTRIBUTE-VALUE-XHTML
Instance

<REQIF:VALUES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
  <REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-DATE>
  <REQIF:ATTRIBUTE-VALUE-ENUMERATION>{1,1}</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
  <REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-INTEGER>
  <REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-REAL>
  <REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-STRING>
  <REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="">{1,1}</REQIF:ATTRIBUTE-VALUE-XHTML>
</REQIF:VALUES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
      <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
      <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
      <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
      <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
      <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
      <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-RELATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-BOOLEAN_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN
Type REQIF:ATTRIBUTE-VALUE-BOOLEAN
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
Attributes
QName Type Use
THE-VALUE xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
Element REQIF:SPEC-RELATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-DATE_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE
Type REQIF:ATTRIBUTE-VALUE-DATE
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-DATE>
Attributes
QName Type Use
THE-VALUE xsd:dateTime required
Source

<xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
Element REQIF:SPEC-RELATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_VALUES reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION
Type REQIF:ATTRIBUTE-VALUE-ENUMERATION
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:VALUES
Instance

<REQIF:ATTRIBUTE-VALUE-ENUMERATION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
  <REQIF:VALUES>{0,1}</REQIF:VALUES>
</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
Source

<xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
Element REQIF:SPEC-RELATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-INTEGER_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER
Type REQIF:ATTRIBUTE-VALUE-INTEGER
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-INTEGER>
Attributes
QName Type Use
THE-VALUE xsd:integer required
Source

<xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
Element REQIF:SPEC-RELATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-REAL_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL
Type REQIF:ATTRIBUTE-VALUE-REAL
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-REAL>
Attributes
QName Type Use
THE-VALUE xsd:double required
Source

<xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
Element REQIF:SPEC-RELATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-STRING_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING
Type REQIF:ATTRIBUTE-VALUE-STRING
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-STRING>
Attributes
QName Type Use
THE-VALUE xsd:string required
Source

<xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
Element REQIF:SPEC-RELATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-XHTML_IS-SIMPLIFIED reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-ORIGINAL-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML
Type REQIF:ATTRIBUTE-VALUE-XHTML
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:THE-ORIGINAL-VALUE, REQIF:THE-VALUE
Instance

<REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:THE-VALUE>{1,1}</REQIF:THE-VALUE>
  <REQIF:THE-ORIGINAL-VALUE>{0,1}</REQIF:THE-ORIGINAL-VALUE>
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-XHTML>
Attributes
QName Type Use
IS-SIMPLIFIED xsd:boolean optional
Source

<xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
Element REQIF:SPEC-RELATION / REQIF:SOURCE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_SOURCE_SPEC-OBJECT-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPEC-OBJECT-REF
Instance

<REQIF:SOURCE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-OBJECT-REF>{1,1}</REQIF:SPEC-OBJECT-REF>
</REQIF:SOURCE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="SOURCE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPEC-OBJECT-REF" type="REQIF:GLOBAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-RELATION / REQIF:SOURCE / REQIF:SPEC-OBJECT-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#GLOBAL-REF
Type REQIF:GLOBAL-REF
Properties
content simple
Source

<xsd:element name="SPEC-OBJECT-REF" type="REQIF:GLOBAL-REF"/>
Element REQIF:SPEC-RELATION / REQIF:TARGET
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_TARGET_SPEC-OBJECT-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPEC-OBJECT-REF
Instance

<REQIF:TARGET xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-OBJECT-REF>{1,1}</REQIF:SPEC-OBJECT-REF>
</REQIF:TARGET>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TARGET">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPEC-OBJECT-REF" type="REQIF:GLOBAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-RELATION / REQIF:TARGET / REQIF:SPEC-OBJECT-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#GLOBAL-REF
Type REQIF:GLOBAL-REF
Properties
content simple
Source

<xsd:element name="SPEC-OBJECT-REF" type="REQIF:GLOBAL-REF"/>
Element REQIF:SPEC-RELATION / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-RELATION_SPEC-RELATION_TYPE_SPEC-RELATION-TYPE-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPEC-RELATION-TYPE-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-RELATION-TYPE-REF>{1,1}</REQIF:SPEC-RELATION-TYPE-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPEC-RELATION-TYPE-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-RELATION / REQIF:TYPE / REQIF:SPEC-RELATION-TYPE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="SPEC-RELATION-TYPE-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPECIFICATIONS
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPECIFICATIONS_SPECIFICATION
Properties
content complex
minOccurs 0
maxOccurs 1
Model
REQIF:SPECIFICATION
Children REQIF:SPECIFICATION
Instance

<REQIF:SPECIFICATIONS xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPECIFICATION DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPECIFICATION>
</REQIF:SPECIFICATIONS>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPECIFICATIONS">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="SPECIFICATION" type="REQIF:SPECIFICATION"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:REQ-IF-CONTENT / REQIF:SPECIFICATIONS / REQIF:SPECIFICATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPECIFICATION_DESC NO_NAMESPACE.tmp#SPECIFICATION_IDENTIFIER NO_NAMESPACE.tmp#SPECIFICATION_LAST-CHANGE NO_NAMESPACE.tmp#SPECIFICATION_LONG-NAME reqif_xsd.tmp#SPECIFICATION_ALTERNATIVE-ID reqif_xsd.tmp#SPECIFICATION_VALUES reqif_xsd.tmp#SPECIFICATION_CHILDREN reqif_xsd.tmp#SPECIFICATION_TYPE reqif_xsd.tmp#SPECIFICATION
Type REQIF:SPECIFICATION
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:VALUES{0,1} REQIF:CHILDREN{0,1} REQIF:TYPE)
Children REQIF:ALTERNATIVE-ID, REQIF:CHILDREN, REQIF:TYPE, REQIF:VALUES
Instance

<REQIF:SPECIFICATION DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:VALUES>{0,1}</REQIF:VALUES>
  <REQIF:CHILDREN>{0,1}</REQIF:CHILDREN>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:SPECIFICATION>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPECIFICATION" type="REQIF:SPECIFICATION"/>
Element REQIF:SPECIFICATION / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPECIFICATION / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:SPECIFICATION / REQIF:VALUES
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_VALUES_ATTRIBUTE-VALUE-BOOLEAN reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_VALUES_ATTRIBUTE-VALUE-DATE reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_VALUES_ATTRIBUTE-VALUE-ENUMERATION reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_VALUES_ATTRIBUTE-VALUE-INTEGER reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_VALUES_ATTRIBUTE-VALUE-REAL reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_VALUES_ATTRIBUTE-VALUE-STRING reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_VALUES_ATTRIBUTE-VALUE-XHTML
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-VALUE-BOOLEAN, REQIF:ATTRIBUTE-VALUE-DATE, REQIF:ATTRIBUTE-VALUE-ENUMERATION, REQIF:ATTRIBUTE-VALUE-INTEGER, REQIF:ATTRIBUTE-VALUE-REAL, REQIF:ATTRIBUTE-VALUE-STRING, REQIF:ATTRIBUTE-VALUE-XHTML
Instance

<REQIF:VALUES xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
  <REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-DATE>
  <REQIF:ATTRIBUTE-VALUE-ENUMERATION>{1,1}</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
  <REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-INTEGER>
  <REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-REAL>
  <REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="">{1,1}</REQIF:ATTRIBUTE-VALUE-STRING>
  <REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="">{1,1}</REQIF:ATTRIBUTE-VALUE-XHTML>
</REQIF:VALUES>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
      <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
      <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
      <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
      <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
      <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
      <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPECIFICATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-BOOLEAN_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN
Type REQIF:ATTRIBUTE-VALUE-BOOLEAN
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-BOOLEAN THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-BOOLEAN>
Attributes
QName Type Use
THE-VALUE xsd:boolean required
Source

<xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
Element REQIF:SPECIFICATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-DATE_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE
Type REQIF:ATTRIBUTE-VALUE-DATE
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-DATE THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-DATE>
Attributes
QName Type Use
THE-VALUE xsd:dateTime required
Source

<xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
Element REQIF:SPECIFICATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_VALUES reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION
Type REQIF:ATTRIBUTE-VALUE-ENUMERATION
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:VALUES
Instance

<REQIF:ATTRIBUTE-VALUE-ENUMERATION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
  <REQIF:VALUES>{0,1}</REQIF:VALUES>
</REQIF:ATTRIBUTE-VALUE-ENUMERATION>
Source

<xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
Element REQIF:SPECIFICATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-INTEGER_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER
Type REQIF:ATTRIBUTE-VALUE-INTEGER
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-INTEGER THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-INTEGER>
Attributes
QName Type Use
THE-VALUE xsd:integer required
Source

<xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
Element REQIF:SPECIFICATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-REAL_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL
Type REQIF:ATTRIBUTE-VALUE-REAL
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-REAL THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-REAL>
Attributes
QName Type Use
THE-VALUE xsd:double required
Source

<xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
Element REQIF:SPECIFICATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-STRING_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING
Type REQIF:ATTRIBUTE-VALUE-STRING
Properties
content complex
Model
Children REQIF:DEFINITION
Instance

<REQIF:ATTRIBUTE-VALUE-STRING THE-VALUE="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-STRING>
Attributes
QName Type Use
THE-VALUE xsd:string required
Source

<xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
Element REQIF:SPECIFICATION / REQIF:VALUES / REQIF:ATTRIBUTE-VALUE-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-XHTML_IS-SIMPLIFIED reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-ORIGINAL-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML
Type REQIF:ATTRIBUTE-VALUE-XHTML
Properties
content complex
Model
Children REQIF:DEFINITION, REQIF:THE-ORIGINAL-VALUE, REQIF:THE-VALUE
Instance

<REQIF:ATTRIBUTE-VALUE-XHTML IS-SIMPLIFIED="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:THE-VALUE>{1,1}</REQIF:THE-VALUE>
  <REQIF:THE-ORIGINAL-VALUE>{0,1}</REQIF:THE-ORIGINAL-VALUE>
  <REQIF:DEFINITION>{1,1}</REQIF:DEFINITION>
</REQIF:ATTRIBUTE-VALUE-XHTML>
Attributes
QName Type Use
IS-SIMPLIFIED xsd:boolean optional
Source

<xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
Element REQIF:SPECIFICATION / REQIF:CHILDREN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_CHILDREN_SPEC-HIERARCHY
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:SPEC-HIERARCHY
Instance

<REQIF:CHILDREN xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-HIERARCHY DESC="" IDENTIFIER="" IS-EDITABLE="" IS-TABLE-INTERNAL="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPEC-HIERARCHY>
</REQIF:CHILDREN>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="CHILDREN">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="SPEC-HIERARCHY" type="REQIF:SPEC-HIERARCHY"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPECIFICATION / REQIF:CHILDREN / REQIF:SPEC-HIERARCHY
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-HIERARCHY_DESC NO_NAMESPACE.tmp#SPEC-HIERARCHY_IDENTIFIER NO_NAMESPACE.tmp#SPEC-HIERARCHY_IS-EDITABLE NO_NAMESPACE.tmp#SPEC-HIERARCHY_IS-TABLE-INTERNAL NO_NAMESPACE.tmp#SPEC-HIERARCHY_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-HIERARCHY_LONG-NAME reqif_xsd.tmp#SPEC-HIERARCHY_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-HIERARCHY_CHILDREN reqif_xsd.tmp#SPEC-HIERARCHY_EDITABLE-ATTS reqif_xsd.tmp#SPEC-HIERARCHY_OBJECT reqif_xsd.tmp#SPEC-HIERARCHY
Type REQIF:SPEC-HIERARCHY
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:CHILDREN, REQIF:EDITABLE-ATTS, REQIF:OBJECT
Instance

<REQIF:SPEC-HIERARCHY DESC="" IDENTIFIER="" IS-EDITABLE="" IS-TABLE-INTERNAL="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:CHILDREN>{0,1}</REQIF:CHILDREN>
  <REQIF:EDITABLE-ATTS>{0,1}</REQIF:EDITABLE-ATTS>
  <REQIF:OBJECT>{1,1}</REQIF:OBJECT>
</REQIF:SPEC-HIERARCHY>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
IS-TABLE-INTERNAL xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPEC-HIERARCHY" type="REQIF:SPEC-HIERARCHY"/>
Element REQIF:SPEC-HIERARCHY / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-HIERARCHY / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:SPEC-HIERARCHY / REQIF:CHILDREN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_CHILDREN_SPEC-HIERARCHY
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:SPEC-HIERARCHY
Instance

<REQIF:CHILDREN xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-HIERARCHY DESC="" IDENTIFIER="" IS-EDITABLE="" IS-TABLE-INTERNAL="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:SPEC-HIERARCHY>
</REQIF:CHILDREN>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="CHILDREN">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="SPEC-HIERARCHY" type="REQIF:SPEC-HIERARCHY"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-HIERARCHY / REQIF:CHILDREN / REQIF:SPEC-HIERARCHY
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-HIERARCHY_DESC NO_NAMESPACE.tmp#SPEC-HIERARCHY_IDENTIFIER NO_NAMESPACE.tmp#SPEC-HIERARCHY_IS-EDITABLE NO_NAMESPACE.tmp#SPEC-HIERARCHY_IS-TABLE-INTERNAL NO_NAMESPACE.tmp#SPEC-HIERARCHY_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-HIERARCHY_LONG-NAME reqif_xsd.tmp#SPEC-HIERARCHY_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-HIERARCHY_CHILDREN reqif_xsd.tmp#SPEC-HIERARCHY_EDITABLE-ATTS reqif_xsd.tmp#SPEC-HIERARCHY_OBJECT reqif_xsd.tmp#SPEC-HIERARCHY
Type REQIF:SPEC-HIERARCHY
Properties
content complex
Model
Children REQIF:ALTERNATIVE-ID, REQIF:CHILDREN, REQIF:EDITABLE-ATTS, REQIF:OBJECT
Instance

<REQIF:SPEC-HIERARCHY DESC="" IDENTIFIER="" IS-EDITABLE="" IS-TABLE-INTERNAL="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:CHILDREN>{0,1}</REQIF:CHILDREN>
  <REQIF:EDITABLE-ATTS>{0,1}</REQIF:EDITABLE-ATTS>
  <REQIF:OBJECT>{1,1}</REQIF:OBJECT>
</REQIF:SPEC-HIERARCHY>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
IS-TABLE-INTERNAL xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="SPEC-HIERARCHY" type="REQIF:SPEC-HIERARCHY"/>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_EDITABLE-ATTS_ATTRIBUTE-DEFINITION-BOOLEAN-REF reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_EDITABLE-ATTS_ATTRIBUTE-DEFINITION-DATE-REF reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_EDITABLE-ATTS_ATTRIBUTE-DEFINITION-ENUMERATION-REF reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_EDITABLE-ATTS_ATTRIBUTE-DEFINITION-INTEGER-REF reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_EDITABLE-ATTS_ATTRIBUTE-DEFINITION-REAL-REF reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_EDITABLE-ATTS_ATTRIBUTE-DEFINITION-STRING-REF reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_EDITABLE-ATTS_ATTRIBUTE-DEFINITION-XHTML-REF
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF, REQIF:ATTRIBUTE-DEFINITION-DATE-REF, REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF, REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF, REQIF:ATTRIBUTE-DEFINITION-REAL-REF, REQIF:ATTRIBUTE-DEFINITION-STRING-REF, REQIF:ATTRIBUTE-DEFINITION-XHTML-REF
Instance

<REQIF:EDITABLE-ATTS xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF>
  <REQIF:ATTRIBUTE-DEFINITION-DATE-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-DATE-REF>
  <REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF>
  <REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF>
  <REQIF:ATTRIBUTE-DEFINITION-REAL-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-REAL-REF>
  <REQIF:ATTRIBUTE-DEFINITION-STRING-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-STRING-REF>
  <REQIF:ATTRIBUTE-DEFINITION-XHTML-REF>{1,1}</REQIF:ATTRIBUTE-DEFINITION-XHTML-REF>
</REQIF:EDITABLE-ATTS>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="EDITABLE-ATTS">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
      <xsd:element name="ATTRIBUTE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS / REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS / REQIF:ATTRIBUTE-DEFINITION-DATE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS / REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS / REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS / REQIF:ATTRIBUTE-DEFINITION-REAL-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS / REQIF:ATTRIBUTE-DEFINITION-STRING-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPEC-HIERARCHY / REQIF:EDITABLE-ATTS / REQIF:ATTRIBUTE-DEFINITION-XHTML-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="ATTRIBUTE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPEC-HIERARCHY / REQIF:OBJECT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPEC-HIERARCHY_SPEC-HIERARCHY_OBJECT_SPEC-OBJECT-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPEC-OBJECT-REF
Instance

<REQIF:OBJECT xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-OBJECT-REF>{1,1}</REQIF:SPEC-OBJECT-REF>
</REQIF:OBJECT>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="OBJECT">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPEC-OBJECT-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPEC-HIERARCHY / REQIF:OBJECT / REQIF:SPEC-OBJECT-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="SPEC-OBJECT-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:SPECIFICATION / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#SPECIFICATION_SPECIFICATION_TYPE_SPECIFICATION-TYPE-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPECIFICATION-TYPE-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPECIFICATION-TYPE-REF>{1,1}</REQIF:SPECIFICATION-TYPE-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPECIFICATION-TYPE-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:SPECIFICATION / REQIF:TYPE / REQIF:SPECIFICATION-TYPE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="SPECIFICATION-TYPE-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-RELATION-GROUPS
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_REQ-IF-CONTENT_SPEC-RELATION-GROUPS_RELATION-GROUP
Properties
content complex
minOccurs 0
maxOccurs 1
Model
REQIF:RELATION-GROUP
Children REQIF:RELATION-GROUP
Instance

<REQIF:SPEC-RELATION-GROUPS xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:RELATION-GROUP DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="">{1,1}</REQIF:RELATION-GROUP>
</REQIF:SPEC-RELATION-GROUPS>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-RELATION-GROUPS">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="RELATION-GROUP" type="REQIF:RELATION-GROUP"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:REQ-IF-CONTENT / REQIF:SPEC-RELATION-GROUPS / REQIF:RELATION-GROUP
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#RELATION-GROUP_DESC NO_NAMESPACE.tmp#RELATION-GROUP_IDENTIFIER NO_NAMESPACE.tmp#RELATION-GROUP_LAST-CHANGE NO_NAMESPACE.tmp#RELATION-GROUP_LONG-NAME reqif_xsd.tmp#RELATION-GROUP_ALTERNATIVE-ID reqif_xsd.tmp#RELATION-GROUP_SOURCE-SPECIFICATION reqif_xsd.tmp#RELATION-GROUP_SPEC-RELATIONS reqif_xsd.tmp#RELATION-GROUP_TARGET-SPECIFICATION reqif_xsd.tmp#RELATION-GROUP_TYPE reqif_xsd.tmp#RELATION-GROUP
Type REQIF:RELATION-GROUP
Properties
content complex
Model
ALL(REQIF:ALTERNATIVE-ID{0,1} REQIF:SOURCE-SPECIFICATION REQIF:SPEC-RELATIONS{0,1} REQIF:TARGET-SPECIFICATION REQIF:TYPE)
Children REQIF:ALTERNATIVE-ID, REQIF:SOURCE-SPECIFICATION, REQIF:SPEC-RELATIONS, REQIF:TARGET-SPECIFICATION, REQIF:TYPE
Instance

<REQIF:RELATION-GROUP DESC="" IDENTIFIER="" LAST-CHANGE="" LONG-NAME="" xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID>{0,1}</REQIF:ALTERNATIVE-ID>
  <REQIF:SOURCE-SPECIFICATION>{1,1}</REQIF:SOURCE-SPECIFICATION>
  <REQIF:SPEC-RELATIONS>{0,1}</REQIF:SPEC-RELATIONS>
  <REQIF:TARGET-SPECIFICATION>{1,1}</REQIF:TARGET-SPECIFICATION>
  <REQIF:TYPE>{1,1}</REQIF:TYPE>
</REQIF:RELATION-GROUP>
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:element name="RELATION-GROUP" type="REQIF:RELATION-GROUP"/>
Element REQIF:RELATION-GROUP / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#RELATION-GROUP_RELATION-GROUP_ALTERNATIVE-ID_ALTERNATIVE-ID
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:ALTERNATIVE-ID
Instance

<REQIF:ALTERNATIVE-ID xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:ALTERNATIVE-ID IDENTIFIER="">{1,1}</REQIF:ALTERNATIVE-ID>
</REQIF:ALTERNATIVE-ID>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="0">
      <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:RELATION-GROUP / REQIF:ALTERNATIVE-ID / REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER reqif_xsd.tmp#ALTERNATIVE-ID
Type REQIF:ALTERNATIVE-ID
Properties
content complex
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
Element REQIF:RELATION-GROUP / REQIF:SOURCE-SPECIFICATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#RELATION-GROUP_RELATION-GROUP_SOURCE-SPECIFICATION_SPECIFICATION-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPECIFICATION-REF
Instance

<REQIF:SOURCE-SPECIFICATION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPECIFICATION-REF>{1,1}</REQIF:SPECIFICATION-REF>
</REQIF:SOURCE-SPECIFICATION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="SOURCE-SPECIFICATION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPECIFICATION-REF" type="REQIF:GLOBAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:RELATION-GROUP / REQIF:SOURCE-SPECIFICATION / REQIF:SPECIFICATION-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#GLOBAL-REF
Type REQIF:GLOBAL-REF
Properties
content simple
Source

<xsd:element name="SPECIFICATION-REF" type="REQIF:GLOBAL-REF"/>
Element REQIF:RELATION-GROUP / REQIF:SPEC-RELATIONS
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#RELATION-GROUP_RELATION-GROUP_SPEC-RELATIONS_SPEC-RELATION-REF
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children REQIF:SPEC-RELATION-REF
Instance

<REQIF:SPEC-RELATIONS xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPEC-RELATION-REF>{1,1}</REQIF:SPEC-RELATION-REF>
</REQIF:SPEC-RELATIONS>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="SPEC-RELATIONS">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="SPEC-RELATION-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:RELATION-GROUP / REQIF:SPEC-RELATIONS / REQIF:SPEC-RELATION-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="SPEC-RELATION-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:RELATION-GROUP / REQIF:TARGET-SPECIFICATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#RELATION-GROUP_RELATION-GROUP_TARGET-SPECIFICATION_SPECIFICATION-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:SPECIFICATION-REF
Instance

<REQIF:TARGET-SPECIFICATION xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:SPECIFICATION-REF>{1,1}</REQIF:SPECIFICATION-REF>
</REQIF:TARGET-SPECIFICATION>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TARGET-SPECIFICATION">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="SPECIFICATION-REF" type="REQIF:GLOBAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:RELATION-GROUP / REQIF:TARGET-SPECIFICATION / REQIF:SPECIFICATION-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#GLOBAL-REF
Type REQIF:GLOBAL-REF
Properties
content simple
Source

<xsd:element name="SPECIFICATION-REF" type="REQIF:GLOBAL-REF"/>
Element REQIF:RELATION-GROUP / REQIF:TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#RELATION-GROUP_RELATION-GROUP_TYPE_RELATION-GROUP-TYPE-REF
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children REQIF:RELATION-GROUP-TYPE-REF
Instance

<REQIF:TYPE xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:RELATION-GROUP-TYPE-REF>{1,1}</REQIF:RELATION-GROUP-TYPE-REF>
</REQIF:TYPE>
Source

<xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
  <xsd:complexType>
    <xsd:choice maxOccurs="1" minOccurs="1">
      <xsd:element name="RELATION-GROUP-TYPE-REF" type="REQIF:LOCAL-REF"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:RELATION-GROUP / REQIF:TYPE / REQIF:RELATION-GROUP-TYPE-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#LOCAL-REF
Type REQIF:LOCAL-REF
Properties
content simple
Source

<xsd:element name="RELATION-GROUP-TYPE-REF" type="REQIF:LOCAL-REF"/>
Element REQIF:REQ-IF / REQIF:TOOL-EXTENSIONS
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_TOOL-EXTENSIONS_REQ-IF-TOOL-EXTENSION
Properties
content complex
minOccurs 0
maxOccurs 1
Model
REQIF:REQ-IF-TOOL-EXTENSION
Children REQIF:REQ-IF-TOOL-EXTENSION
Instance

<REQIF:TOOL-EXTENSIONS xmlns:REQIF="http://www.omg.org/spec/ReqIF/20110401/reqif.xsd">
  <REQIF:REQ-IF-TOOL-EXTENSION>{1,1}</REQIF:REQ-IF-TOOL-EXTENSION>
</REQIF:TOOL-EXTENSIONS>
Source

<xsd:element maxOccurs="1" minOccurs="0" name="TOOL-EXTENSIONS">
  <xsd:complexType>
    <xsd:choice maxOccurs="unbounded" minOccurs="0">
      <xsd:element name="REQ-IF-TOOL-EXTENSION" type="REQIF:REQ-IF-TOOL-EXTENSION"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element REQIF:REQ-IF / REQIF:TOOL-EXTENSIONS / REQIF:REQ-IF-TOOL-EXTENSION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-TOOL-EXTENSION
Type REQIF:REQ-IF-TOOL-EXTENSION
Properties
content complex
Model
ANY element from ANY namespace OTHER than 'http://www.omg.org/spec/ReqIF/20110401/reqif.xsd'
Source

<xsd:element name="REQ-IF-TOOL-EXTENSION" type="REQIF:REQ-IF-TOOL-EXTENSION"/>
Complex Type REQIF:REQ-IF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram namespace.tmp#lang reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_THE-HEADER reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_CORE-CONTENT reqif_xsd.tmp#http___www.omg.org_spec_ReqIF_20110401_reqif.xsd_REQ-IF_TOOL-EXTENSIONS
Used by
Element REQIF:REQ-IF
Model
REQIF:THE-HEADER , REQIF:CORE-CONTENT , REQIF:TOOL-EXTENSIONS{0,1}
Children REQIF:CORE-CONTENT, REQIF:THE-HEADER, REQIF:TOOL-EXTENSIONS
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<xsd:complexType name="REQ-IF">
  <xsd:sequence>
    <xsd:element maxOccurs="1" minOccurs="1" name="THE-HEADER">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="REQ-IF-HEADER" type="REQIF:REQ-IF-HEADER"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="CORE-CONTENT">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="REQ-IF-CONTENT" type="REQIF:REQ-IF-CONTENT"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="TOOL-EXTENSIONS">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="REQ-IF-TOOL-EXTENSION" type="REQIF:REQ-IF-TOOL-EXTENSION"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
  <xsd:attribute ref="xml:lang" use="optional"/>
</xsd:complexType>
Complex Type REQIF:REQ-IF-HEADER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#REQ-IF-HEADER_IDENTIFIER reqif_xsd.tmp#REQ-IF-HEADER_COMMENT reqif_xsd.tmp#REQ-IF-HEADER_CREATION-TIME reqif_xsd.tmp#REQ-IF-HEADER_REPOSITORY-ID reqif_xsd.tmp#REQ-IF-HEADER_REQ-IF-TOOL-ID reqif_xsd.tmp#REQ-IF-HEADER_REQ-IF-VERSION reqif_xsd.tmp#REQ-IF-HEADER_SOURCE-TOOL-ID reqif_xsd.tmp#REQ-IF-HEADER_TITLE
Used by
Model
Children REQIF:COMMENT, REQIF:CREATION-TIME, REQIF:REPOSITORY-ID, REQIF:REQ-IF-TOOL-ID, REQIF:REQ-IF-VERSION, REQIF:SOURCE-TOOL-ID, REQIF:TITLE
Attributes
QName Type Use
IDENTIFIER xsd:ID required
Source

<xsd:complexType name="REQ-IF-HEADER">
  <xsd:sequence>
    <xsd:element maxOccurs="1" minOccurs="0" name="COMMENT" type="xsd:string"/>
    <xsd:element maxOccurs="1" minOccurs="1" name="CREATION-TIME" type="xsd:dateTime"/>
    <xsd:element maxOccurs="1" minOccurs="0" name="REPOSITORY-ID" type="xsd:string"/>
    <xsd:element maxOccurs="1" minOccurs="1" name="REQ-IF-TOOL-ID" type="xsd:string"/>
    <xsd:element fixed="1.0" maxOccurs="1" minOccurs="1" name="REQ-IF-VERSION" type="xsd:string"/>
    <xsd:element maxOccurs="1" minOccurs="1" name="SOURCE-TOOL-ID" type="xsd:string"/>
    <xsd:element maxOccurs="1" minOccurs="1" name="TITLE" type="xsd:string"/>
  </xsd:sequence>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
</xsd:complexType>
Complex Type REQIF:REQ-IF-CONTENT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#REQ-IF-CONTENT_DATATYPES reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-TYPES reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-OBJECTS reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-RELATIONS reqif_xsd.tmp#REQ-IF-CONTENT_SPECIFICATIONS reqif_xsd.tmp#REQ-IF-CONTENT_SPEC-RELATION-GROUPS
Used by
Element REQIF:REQ-IF/REQIF:CORE-CONTENT/REQIF:REQ-IF-CONTENT
Model
REQIF:DATATYPES{0,1} , REQIF:SPEC-TYPES{0,1} , REQIF:SPEC-OBJECTS{0,1} , REQIF:SPEC-RELATIONS{0,1} , REQIF:SPECIFICATIONS{0,1} , REQIF:SPEC-RELATION-GROUPS{0,1}
Children REQIF:DATATYPES, REQIF:SPEC-OBJECTS, REQIF:SPEC-RELATION-GROUPS, REQIF:SPEC-RELATIONS, REQIF:SPEC-TYPES, REQIF:SPECIFICATIONS
Source

<xsd:complexType name="REQ-IF-CONTENT">
  <xsd:sequence>
    <xsd:element maxOccurs="1" minOccurs="0" name="DATATYPES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="DATATYPE-DEFINITION-BOOLEAN" type="REQIF:DATATYPE-DEFINITION-BOOLEAN"/>
          <xsd:element name="DATATYPE-DEFINITION-DATE" type="REQIF:DATATYPE-DEFINITION-DATE"/>
          <xsd:element name="DATATYPE-DEFINITION-ENUMERATION" type="REQIF:DATATYPE-DEFINITION-ENUMERATION"/>
          <xsd:element name="DATATYPE-DEFINITION-INTEGER" type="REQIF:DATATYPE-DEFINITION-INTEGER"/>
          <xsd:element name="DATATYPE-DEFINITION-REAL" type="REQIF:DATATYPE-DEFINITION-REAL"/>
          <xsd:element name="DATATYPE-DEFINITION-STRING" type="REQIF:DATATYPE-DEFINITION-STRING"/>
          <xsd:element name="DATATYPE-DEFINITION-XHTML" type="REQIF:DATATYPE-DEFINITION-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-TYPES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="RELATION-GROUP-TYPE" type="REQIF:RELATION-GROUP-TYPE"/>
          <xsd:element name="SPEC-OBJECT-TYPE" type="REQIF:SPEC-OBJECT-TYPE"/>
          <xsd:element name="SPEC-RELATION-TYPE" type="REQIF:SPEC-RELATION-TYPE"/>
          <xsd:element name="SPECIFICATION-TYPE" type="REQIF:SPECIFICATION-TYPE"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-OBJECTS">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="SPEC-OBJECT" type="REQIF:SPEC-OBJECT"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-RELATIONS">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="SPEC-RELATION" type="REQIF:SPEC-RELATION"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPECIFICATIONS">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="SPECIFICATION" type="REQIF:SPECIFICATION"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-RELATION-GROUPS">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="RELATION-GROUP" type="REQIF:RELATION-GROUP"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:sequence>
</xsd:complexType>
Complex Type REQIF:DATATYPE-DEFINITION-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-BOOLEAN_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-BOOLEAN_ALTERNATIVE-ID
Used by
Model
Children REQIF:ALTERNATIVE-ID
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="DATATYPE-DEFINITION-BOOLEAN">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ALTERNATIVE-ID
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ALTERNATIVE-ID_IDENTIFIER
Used by
Elements REQIF:ATTRIBUTE-DEFINITION-BOOLEAN/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:ATTRIBUTE-DEFINITION-DATE/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:ATTRIBUTE-DEFINITION-ENUMERATION/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:ATTRIBUTE-DEFINITION-INTEGER/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:ATTRIBUTE-DEFINITION-REAL/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:ATTRIBUTE-DEFINITION-STRING/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:ATTRIBUTE-DEFINITION-XHTML/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:DATATYPE-DEFINITION-BOOLEAN/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:DATATYPE-DEFINITION-DATE/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:DATATYPE-DEFINITION-ENUMERATION/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:DATATYPE-DEFINITION-INTEGER/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:DATATYPE-DEFINITION-REAL/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:DATATYPE-DEFINITION-STRING/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:DATATYPE-DEFINITION-XHTML/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:ENUM-VALUE/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:RELATION-GROUP-TYPE/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:RELATION-GROUP/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:SPEC-HIERARCHY/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:SPEC-OBJECT-TYPE/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:SPEC-OBJECT/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:SPEC-RELATION-TYPE/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:SPEC-RELATION/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:SPECIFICATION-TYPE/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID, REQIF:SPECIFICATION/REQIF:ALTERNATIVE-ID/REQIF:ALTERNATIVE-ID
Model
ALL()
Attributes
QName Type Use
IDENTIFIER xsd:string required
Source

<xsd:complexType name="ALTERNATIVE-ID">
  <xsd:all/>
  <xsd:attribute name="IDENTIFIER" type="xsd:string" use="required"/>
</xsd:complexType>
Complex Type REQIF:DATATYPE-DEFINITION-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-DATE_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-DATE_ALTERNATIVE-ID
Used by
Model
Children REQIF:ALTERNATIVE-ID
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="DATATYPE-DEFINITION-DATE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:DATATYPE-DEFINITION-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-ENUMERATION_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-ENUMERATION_ALTERNATIVE-ID reqif_xsd.tmp#DATATYPE-DEFINITION-ENUMERATION_SPECIFIED-VALUES
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:SPECIFIED-VALUES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="DATATYPE-DEFINITION-ENUMERATION">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPECIFIED-VALUES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ENUM-VALUE" type="REQIF:ENUM-VALUE"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ENUM-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ENUM-VALUE_DESC NO_NAMESPACE.tmp#ENUM-VALUE_IDENTIFIER NO_NAMESPACE.tmp#ENUM-VALUE_LAST-CHANGE NO_NAMESPACE.tmp#ENUM-VALUE_LONG-NAME reqif_xsd.tmp#ENUM-VALUE_ALTERNATIVE-ID reqif_xsd.tmp#ENUM-VALUE_PROPERTIES
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:PROPERTIES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="ENUM-VALUE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="PROPERTIES">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="EMBEDDED-VALUE" type="REQIF:EMBEDDED-VALUE"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:EMBEDDED-VALUE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#EMBEDDED-VALUE_KEY NO_NAMESPACE.tmp#EMBEDDED-VALUE_OTHER-CONTENT
Used by
Model
ALL()
Attributes
QName Type Use
KEY xsd:integer required
OTHER-CONTENT xsd:string required
Source

<xsd:complexType name="EMBEDDED-VALUE">
  <xsd:all/>
  <xsd:attribute name="KEY" type="xsd:integer" use="required"/>
  <xsd:attribute name="OTHER-CONTENT" type="xsd:string" use="required"/>
</xsd:complexType>
Complex Type REQIF:DATATYPE-DEFINITION-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_LONG-NAME NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_MAX NO_NAMESPACE.tmp#DATATYPE-DEFINITION-INTEGER_MIN reqif_xsd.tmp#DATATYPE-DEFINITION-INTEGER_ALTERNATIVE-ID
Used by
Model
Children REQIF:ALTERNATIVE-ID
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MAX xsd:integer required
MIN xsd:integer required
Source

<xsd:complexType name="DATATYPE-DEFINITION-INTEGER">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
  <xsd:attribute name="MAX" type="xsd:integer" use="required"/>
  <xsd:attribute name="MIN" type="xsd:integer" use="required"/>
</xsd:complexType>
Complex Type REQIF:DATATYPE-DEFINITION-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_ACCURACY NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_LONG-NAME NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_MAX NO_NAMESPACE.tmp#DATATYPE-DEFINITION-REAL_MIN reqif_xsd.tmp#DATATYPE-DEFINITION-REAL_ALTERNATIVE-ID
Used by
Model
Children REQIF:ALTERNATIVE-ID
Attributes
QName Type Use
ACCURACY xsd:integer required
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MAX xsd:double required
MIN xsd:double required
Source

<xsd:complexType name="DATATYPE-DEFINITION-REAL">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="ACCURACY" type="xsd:integer" use="required"/>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
  <xsd:attribute name="MAX" type="xsd:double" use="required"/>
  <xsd:attribute name="MIN" type="xsd:double" use="required"/>
</xsd:complexType>
Complex Type REQIF:DATATYPE-DEFINITION-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_LONG-NAME NO_NAMESPACE.tmp#DATATYPE-DEFINITION-STRING_MAX-LENGTH reqif_xsd.tmp#DATATYPE-DEFINITION-STRING_ALTERNATIVE-ID
Used by
Model
Children REQIF:ALTERNATIVE-ID
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MAX-LENGTH xsd:integer required
Source

<xsd:complexType name="DATATYPE-DEFINITION-STRING">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
  <xsd:attribute name="MAX-LENGTH" type="xsd:integer" use="required"/>
</xsd:complexType>
Complex Type REQIF:DATATYPE-DEFINITION-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_DESC NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_IDENTIFIER NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_LAST-CHANGE NO_NAMESPACE.tmp#DATATYPE-DEFINITION-XHTML_LONG-NAME reqif_xsd.tmp#DATATYPE-DEFINITION-XHTML_ALTERNATIVE-ID
Used by
Model
Children REQIF:ALTERNATIVE-ID
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="DATATYPE-DEFINITION-XHTML">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:RELATION-GROUP-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_DESC NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_IDENTIFIER NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#RELATION-GROUP-TYPE_LONG-NAME reqif_xsd.tmp#RELATION-GROUP-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#RELATION-GROUP-TYPE_SPEC-ATTRIBUTES
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="RELATION-GROUP-TYPE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-DEFINITION-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-BOOLEAN_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="ATTRIBUTE-DEFINITION-BOOLEAN">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="DATATYPE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-VALUE-BOOLEAN
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-BOOLEAN_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-BOOLEAN_DEFINITION
Used by
Model
Children REQIF:DEFINITION
Attributes
QName Type Use
THE-VALUE xsd:boolean required
Source

<xsd:complexType name="ATTRIBUTE-VALUE-BOOLEAN">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="THE-VALUE" type="xsd:boolean" use="required"/>
</xsd:complexType>
Simple Type REQIF:LOCAL-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:IDREF
Used by
Elements REQIF:ATTRIBUTE-DEFINITION-BOOLEAN/REQIF:TYPE/REQIF:DATATYPE-DEFINITION-BOOLEAN-REF, REQIF:ATTRIBUTE-DEFINITION-DATE/REQIF:TYPE/REQIF:DATATYPE-DEFINITION-DATE-REF, REQIF:ATTRIBUTE-DEFINITION-ENUMERATION/REQIF:TYPE/REQIF:DATATYPE-DEFINITION-ENUMERATION-REF, REQIF:ATTRIBUTE-DEFINITION-INTEGER/REQIF:TYPE/REQIF:DATATYPE-DEFINITION-INTEGER-REF, REQIF:ATTRIBUTE-DEFINITION-REAL/REQIF:TYPE/REQIF:DATATYPE-DEFINITION-REAL-REF, REQIF:ATTRIBUTE-DEFINITION-STRING/REQIF:TYPE/REQIF:DATATYPE-DEFINITION-STRING-REF, REQIF:ATTRIBUTE-DEFINITION-XHTML/REQIF:TYPE/REQIF:DATATYPE-DEFINITION-XHTML-REF, REQIF:ATTRIBUTE-VALUE-BOOLEAN/REQIF:DEFINITION/REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF, REQIF:ATTRIBUTE-VALUE-DATE/REQIF:DEFINITION/REQIF:ATTRIBUTE-DEFINITION-DATE-REF, REQIF:ATTRIBUTE-VALUE-ENUMERATION/REQIF:DEFINITION/REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF, REQIF:ATTRIBUTE-VALUE-ENUMERATION/REQIF:VALUES/REQIF:ENUM-VALUE-REF, REQIF:ATTRIBUTE-VALUE-INTEGER/REQIF:DEFINITION/REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF, REQIF:ATTRIBUTE-VALUE-REAL/REQIF:DEFINITION/REQIF:ATTRIBUTE-DEFINITION-REAL-REF, REQIF:ATTRIBUTE-VALUE-STRING/REQIF:DEFINITION/REQIF:ATTRIBUTE-DEFINITION-STRING-REF, REQIF:ATTRIBUTE-VALUE-XHTML/REQIF:DEFINITION/REQIF:ATTRIBUTE-DEFINITION-XHTML-REF, REQIF:RELATION-GROUP/REQIF:SPEC-RELATIONS/REQIF:SPEC-RELATION-REF, REQIF:RELATION-GROUP/REQIF:TYPE/REQIF:RELATION-GROUP-TYPE-REF, REQIF:SPEC-HIERARCHY/REQIF:EDITABLE-ATTS/REQIF:ATTRIBUTE-DEFINITION-BOOLEAN-REF, REQIF:SPEC-HIERARCHY/REQIF:EDITABLE-ATTS/REQIF:ATTRIBUTE-DEFINITION-DATE-REF, REQIF:SPEC-HIERARCHY/REQIF:EDITABLE-ATTS/REQIF:ATTRIBUTE-DEFINITION-ENUMERATION-REF, REQIF:SPEC-HIERARCHY/REQIF:EDITABLE-ATTS/REQIF:ATTRIBUTE-DEFINITION-INTEGER-REF, REQIF:SPEC-HIERARCHY/REQIF:EDITABLE-ATTS/REQIF:ATTRIBUTE-DEFINITION-REAL-REF, REQIF:SPEC-HIERARCHY/REQIF:EDITABLE-ATTS/REQIF:ATTRIBUTE-DEFINITION-STRING-REF, REQIF:SPEC-HIERARCHY/REQIF:EDITABLE-ATTS/REQIF:ATTRIBUTE-DEFINITION-XHTML-REF, REQIF:SPEC-HIERARCHY/REQIF:OBJECT/REQIF:SPEC-OBJECT-REF, REQIF:SPEC-OBJECT/REQIF:TYPE/REQIF:SPEC-OBJECT-TYPE-REF, REQIF:SPEC-RELATION/REQIF:TYPE/REQIF:SPEC-RELATION-TYPE-REF, REQIF:SPECIFICATION/REQIF:TYPE/REQIF:SPECIFICATION-TYPE-REF
Source

<xsd:simpleType name="LOCAL-REF">
  <xsd:restriction base="xsd:IDREF"/>
</xsd:simpleType>
Complex Type REQIF:ATTRIBUTE-DEFINITION-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-DATE_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-DATE_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="ATTRIBUTE-DEFINITION-DATE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="DATATYPE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-VALUE-DATE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-DATE_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-DATE_DEFINITION
Used by
Model
Children REQIF:DEFINITION
Attributes
QName Type Use
THE-VALUE xsd:dateTime required
Source

<xsd:complexType name="ATTRIBUTE-VALUE-DATE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="ATTRIBUTE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="THE-VALUE" type="xsd:dateTime" use="required"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-DEFINITION-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_LONG-NAME NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_MULTI-VALUED reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-ENUMERATION_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
MULTI-VALUED xsd:boolean required
Source

<xsd:complexType name="ATTRIBUTE-DEFINITION-ENUMERATION">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="DATATYPE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
  <xsd:attribute name="MULTI-VALUED" type="xsd:boolean" use="required"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-VALUE-ENUMERATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_DEFINITION reqif_xsd.tmp#ATTRIBUTE-VALUE-ENUMERATION_VALUES
Used by
Model
Children REQIF:DEFINITION, REQIF:VALUES
Source

<xsd:complexType name="ATTRIBUTE-VALUE-ENUMERATION">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ENUM-VALUE-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-DEFINITION-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-INTEGER_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-INTEGER_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="ATTRIBUTE-DEFINITION-INTEGER">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="DATATYPE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-VALUE-INTEGER
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-INTEGER_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-INTEGER_DEFINITION
Used by
Model
Children REQIF:DEFINITION
Attributes
QName Type Use
THE-VALUE xsd:integer required
Source

<xsd:complexType name="ATTRIBUTE-VALUE-INTEGER">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="THE-VALUE" type="xsd:integer" use="required"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-DEFINITION-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-REAL_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-REAL_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="ATTRIBUTE-DEFINITION-REAL">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="DATATYPE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-VALUE-REAL
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-REAL_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-REAL_DEFINITION
Used by
Model
Children REQIF:DEFINITION
Attributes
QName Type Use
THE-VALUE xsd:double required
Source

<xsd:complexType name="ATTRIBUTE-VALUE-REAL">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="ATTRIBUTE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="THE-VALUE" type="xsd:double" use="required"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-DEFINITION-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-STRING_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-STRING_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="ATTRIBUTE-DEFINITION-STRING">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="DATATYPE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-VALUE-STRING
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-STRING_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-STRING_DEFINITION
Used by
Model
Children REQIF:DEFINITION
Attributes
QName Type Use
THE-VALUE xsd:string required
Source

<xsd:complexType name="ATTRIBUTE-VALUE-STRING">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="ATTRIBUTE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="THE-VALUE" type="xsd:string" use="required"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-DEFINITION-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_DESC NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IDENTIFIER NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_IS-EDITABLE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LAST-CHANGE NO_NAMESPACE.tmp#ATTRIBUTE-DEFINITION-XHTML_LONG-NAME reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_ALTERNATIVE-ID reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_DEFAULT-VALUE reqif_xsd.tmp#ATTRIBUTE-DEFINITION-XHTML_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:DEFAULT-VALUE, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="ATTRIBUTE-DEFINITION-XHTML">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="DEFAULT-VALUE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="DATATYPE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:ATTRIBUTE-VALUE-XHTML
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#ATTRIBUTE-VALUE-XHTML_IS-SIMPLIFIED reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_THE-ORIGINAL-VALUE reqif_xsd.tmp#ATTRIBUTE-VALUE-XHTML_DEFINITION
Used by
Model
Children REQIF:DEFINITION, REQIF:THE-ORIGINAL-VALUE, REQIF:THE-VALUE
Attributes
QName Type Use
IS-SIMPLIFIED xsd:boolean optional
Source

<xsd:complexType name="ATTRIBUTE-VALUE-XHTML">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="1" name="THE-VALUE" type="REQIF:XHTML-CONTENT"/>
    <xsd:element maxOccurs="1" minOccurs="0" name="THE-ORIGINAL-VALUE" type="REQIF:XHTML-CONTENT"/>
    <xsd:element maxOccurs="1" minOccurs="1" name="DEFINITION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="ATTRIBUTE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="IS-SIMPLIFIED" type="xsd:boolean" use="optional"/>
</xsd:complexType>
Complex Type REQIF:XHTML-CONTENT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram xhtml.tmp#xhtml.BlkStruct.class_p xhtml.tmp#xhtml.BlkStruct.class_div xhtml.tmp#xhtml.BlkStruct.class
Used by
Elements REQIF:ATTRIBUTE-VALUE-XHTML/REQIF:THE-ORIGINAL-VALUE, REQIF:ATTRIBUTE-VALUE-XHTML/REQIF:THE-VALUE
Model
p | div
Children div, p
Source

<xsd:complexType name="XHTML-CONTENT">
  <xsd:group ref="xhtml.BlkStruct.class"/>
</xsd:complexType>
Complex Type REQIF:SPEC-OBJECT-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_DESC NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_IDENTIFIER NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-OBJECT-TYPE_LONG-NAME reqif_xsd.tmp#SPEC-OBJECT-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-OBJECT-TYPE_SPEC-ATTRIBUTES
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="SPEC-OBJECT-TYPE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:SPEC-RELATION-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_DESC NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_IDENTIFIER NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-RELATION-TYPE_LONG-NAME reqif_xsd.tmp#SPEC-RELATION-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-RELATION-TYPE_SPEC-ATTRIBUTES
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="SPEC-RELATION-TYPE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:SPECIFICATION-TYPE
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPECIFICATION-TYPE_DESC NO_NAMESPACE.tmp#SPECIFICATION-TYPE_IDENTIFIER NO_NAMESPACE.tmp#SPECIFICATION-TYPE_LAST-CHANGE NO_NAMESPACE.tmp#SPECIFICATION-TYPE_LONG-NAME reqif_xsd.tmp#SPECIFICATION-TYPE_ALTERNATIVE-ID reqif_xsd.tmp#SPECIFICATION-TYPE_SPEC-ATTRIBUTES
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:SPEC-ATTRIBUTES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="SPECIFICATION-TYPE">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-ATTRIBUTES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN" type="REQIF:ATTRIBUTE-DEFINITION-BOOLEAN"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-DATE" type="REQIF:ATTRIBUTE-DEFINITION-DATE"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION" type="REQIF:ATTRIBUTE-DEFINITION-ENUMERATION"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER" type="REQIF:ATTRIBUTE-DEFINITION-INTEGER"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-REAL" type="REQIF:ATTRIBUTE-DEFINITION-REAL"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-STRING" type="REQIF:ATTRIBUTE-DEFINITION-STRING"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-XHTML" type="REQIF:ATTRIBUTE-DEFINITION-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:SPEC-OBJECT
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-OBJECT_DESC NO_NAMESPACE.tmp#SPEC-OBJECT_IDENTIFIER NO_NAMESPACE.tmp#SPEC-OBJECT_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-OBJECT_LONG-NAME reqif_xsd.tmp#SPEC-OBJECT_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-OBJECT_VALUES reqif_xsd.tmp#SPEC-OBJECT_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:TYPE, REQIF:VALUES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="SPEC-OBJECT">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
          <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
          <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
          <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
          <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
          <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
          <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPEC-OBJECT-TYPE-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:SPEC-RELATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-RELATION_DESC NO_NAMESPACE.tmp#SPEC-RELATION_IDENTIFIER NO_NAMESPACE.tmp#SPEC-RELATION_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-RELATION_LONG-NAME reqif_xsd.tmp#SPEC-RELATION_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-RELATION_VALUES reqif_xsd.tmp#SPEC-RELATION_SOURCE reqif_xsd.tmp#SPEC-RELATION_TARGET reqif_xsd.tmp#SPEC-RELATION_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:SOURCE, REQIF:TARGET, REQIF:TYPE, REQIF:VALUES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="SPEC-RELATION">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
          <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
          <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
          <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
          <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
          <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
          <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="SOURCE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPEC-OBJECT-REF" type="REQIF:GLOBAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TARGET">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPEC-OBJECT-REF" type="REQIF:GLOBAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPEC-RELATION-TYPE-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Simple Type REQIF:GLOBAL-REF
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Type xsd:string
Used by
Source

<xsd:simpleType name="GLOBAL-REF">
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type REQIF:SPECIFICATION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPECIFICATION_DESC NO_NAMESPACE.tmp#SPECIFICATION_IDENTIFIER NO_NAMESPACE.tmp#SPECIFICATION_LAST-CHANGE NO_NAMESPACE.tmp#SPECIFICATION_LONG-NAME reqif_xsd.tmp#SPECIFICATION_ALTERNATIVE-ID reqif_xsd.tmp#SPECIFICATION_VALUES reqif_xsd.tmp#SPECIFICATION_CHILDREN reqif_xsd.tmp#SPECIFICATION_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:CHILDREN, REQIF:TYPE, REQIF:VALUES
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="SPECIFICATION">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="VALUES">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-VALUE-BOOLEAN" type="REQIF:ATTRIBUTE-VALUE-BOOLEAN"/>
          <xsd:element name="ATTRIBUTE-VALUE-DATE" type="REQIF:ATTRIBUTE-VALUE-DATE"/>
          <xsd:element name="ATTRIBUTE-VALUE-ENUMERATION" type="REQIF:ATTRIBUTE-VALUE-ENUMERATION"/>
          <xsd:element name="ATTRIBUTE-VALUE-INTEGER" type="REQIF:ATTRIBUTE-VALUE-INTEGER"/>
          <xsd:element name="ATTRIBUTE-VALUE-REAL" type="REQIF:ATTRIBUTE-VALUE-REAL"/>
          <xsd:element name="ATTRIBUTE-VALUE-STRING" type="REQIF:ATTRIBUTE-VALUE-STRING"/>
          <xsd:element name="ATTRIBUTE-VALUE-XHTML" type="REQIF:ATTRIBUTE-VALUE-XHTML"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="CHILDREN">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="SPEC-HIERARCHY" type="REQIF:SPEC-HIERARCHY"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPECIFICATION-TYPE-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:SPEC-HIERARCHY
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#SPEC-HIERARCHY_DESC NO_NAMESPACE.tmp#SPEC-HIERARCHY_IDENTIFIER NO_NAMESPACE.tmp#SPEC-HIERARCHY_IS-EDITABLE NO_NAMESPACE.tmp#SPEC-HIERARCHY_IS-TABLE-INTERNAL NO_NAMESPACE.tmp#SPEC-HIERARCHY_LAST-CHANGE NO_NAMESPACE.tmp#SPEC-HIERARCHY_LONG-NAME reqif_xsd.tmp#SPEC-HIERARCHY_ALTERNATIVE-ID reqif_xsd.tmp#SPEC-HIERARCHY_CHILDREN reqif_xsd.tmp#SPEC-HIERARCHY_EDITABLE-ATTS reqif_xsd.tmp#SPEC-HIERARCHY_OBJECT
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:CHILDREN, REQIF:EDITABLE-ATTS, REQIF:OBJECT
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
IS-EDITABLE xsd:boolean optional
IS-TABLE-INTERNAL xsd:boolean optional
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="SPEC-HIERARCHY">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="CHILDREN">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="SPEC-HIERARCHY" type="REQIF:SPEC-HIERARCHY"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="EDITABLE-ATTS">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="ATTRIBUTE-DEFINITION-BOOLEAN-REF" type="REQIF:LOCAL-REF"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-DATE-REF" type="REQIF:LOCAL-REF"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-ENUMERATION-REF" type="REQIF:LOCAL-REF"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-INTEGER-REF" type="REQIF:LOCAL-REF"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-REAL-REF" type="REQIF:LOCAL-REF"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-STRING-REF" type="REQIF:LOCAL-REF"/>
          <xsd:element name="ATTRIBUTE-DEFINITION-XHTML-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="OBJECT">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPEC-OBJECT-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="IS-EDITABLE" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="IS-TABLE-INTERNAL" type="xsd:boolean" use="optional"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:RELATION-GROUP
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram NO_NAMESPACE.tmp#RELATION-GROUP_DESC NO_NAMESPACE.tmp#RELATION-GROUP_IDENTIFIER NO_NAMESPACE.tmp#RELATION-GROUP_LAST-CHANGE NO_NAMESPACE.tmp#RELATION-GROUP_LONG-NAME reqif_xsd.tmp#RELATION-GROUP_ALTERNATIVE-ID reqif_xsd.tmp#RELATION-GROUP_SOURCE-SPECIFICATION reqif_xsd.tmp#RELATION-GROUP_SPEC-RELATIONS reqif_xsd.tmp#RELATION-GROUP_TARGET-SPECIFICATION reqif_xsd.tmp#RELATION-GROUP_TYPE
Used by
Model
Children REQIF:ALTERNATIVE-ID, REQIF:SOURCE-SPECIFICATION, REQIF:SPEC-RELATIONS, REQIF:TARGET-SPECIFICATION, REQIF:TYPE
Attributes
QName Type Use
DESC xsd:string optional
IDENTIFIER xsd:ID required
LAST-CHANGE xsd:dateTime required
LONG-NAME xsd:string optional
Source

<xsd:complexType name="RELATION-GROUP">
  <xsd:all>
    <xsd:element maxOccurs="1" minOccurs="0" name="ALTERNATIVE-ID">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="0">
          <xsd:element name="ALTERNATIVE-ID" type="REQIF:ALTERNATIVE-ID"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="SOURCE-SPECIFICATION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPECIFICATION-REF" type="REQIF:GLOBAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="0" name="SPEC-RELATIONS">
      <xsd:complexType>
        <xsd:choice maxOccurs="unbounded" minOccurs="0">
          <xsd:element name="SPEC-RELATION-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TARGET-SPECIFICATION">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="SPECIFICATION-REF" type="REQIF:GLOBAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
    <xsd:element maxOccurs="1" minOccurs="1" name="TYPE">
      <xsd:complexType>
        <xsd:choice maxOccurs="1" minOccurs="1">
          <xsd:element name="RELATION-GROUP-TYPE-REF" type="REQIF:LOCAL-REF"/>
        </xsd:choice>
      </xsd:complexType>
    </xsd:element>
  </xsd:all>
  <xsd:attribute name="DESC" type="xsd:string" use="optional"/>
  <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/>
  <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/>
  <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/>
</xsd:complexType>
Complex Type REQIF:REQ-IF-TOOL-EXTENSION
Namespace http://www.omg.org/spec/ReqIF/20110401/reqif.xsd
Diagram
Diagram
Used by
Model
ANY element from ANY namespace OTHER than 'http://www.omg.org/spec/ReqIF/20110401/reqif.xsd'
Source

<xsd:complexType name="REQ-IF-TOOL-EXTENSION">
  <xsd:sequence>
    <xsd:any namespace="##other" processContents="lax" maxOccurs="unbounded" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
XML Schema documentation generated by ® XML Editor.
